Kia Sportage: Front Wheel Speed Sensor | Rear Wheel Speed Sensor

Kia Sportage Third generation (SL) - (2011-2016) - Service and Repair Manual / Brake System / ESC (Electronic Stability Control) System / Front Wheel Speed Sensor | Rear Wheel Speed Sensor

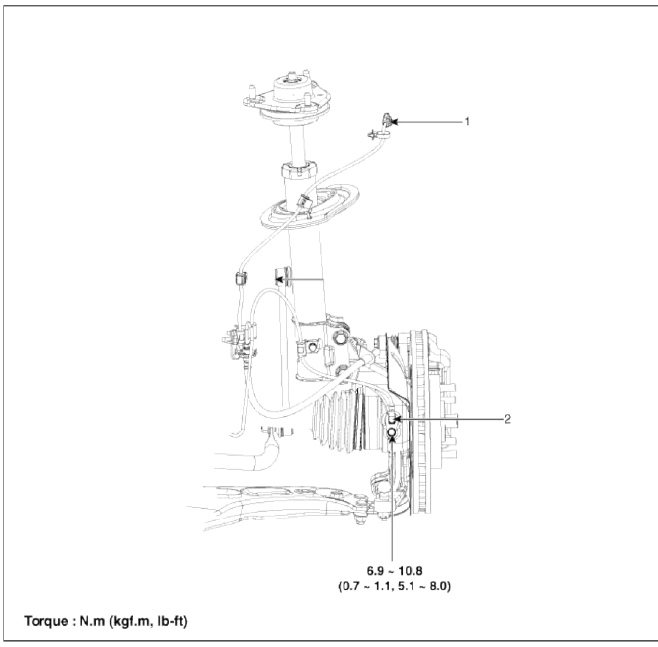

Components and Components Location

 Components

  1. Front wheel speed sensor connector
  2. Front wheel speed sensor

Repair procedures

Removal

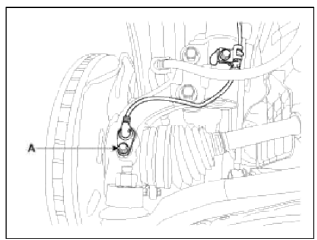

1. Remove the front wheel speed sensor mounting bolt (A).

Tightening torque: 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

2. Remove the front wheel guard .

2. Remove the front wheel guard .

3. Disconnect the front wheel speed sensor connector, then remove the front wheel speed sensor.

4. Installation is the reverse of removal

Inspection

1. Measure the output voltage between the terminal of the wheel speed sensor and the body ground.

CAUTION

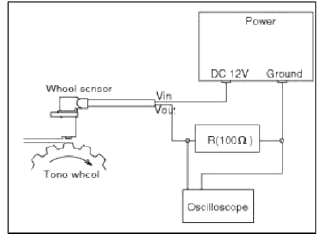

In order to protect the wheel speed sensor, when measuring output voltage, a 100 Ω resistor must be used as shown.

2. Compare the change of the output voltage of the wheel speed sensor to the

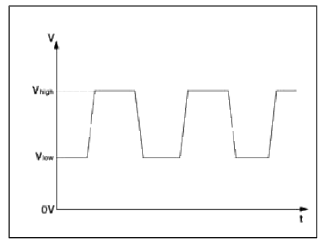

2. Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown below.

V_low: 0.59V ~ 0.84V

V_low: 0.59V ~ 0.84V

V_high: 1.18V ~ 1.68 V

Frequency range : 1 ~ 2,500Hz

Rear Wheel Speed Sensor

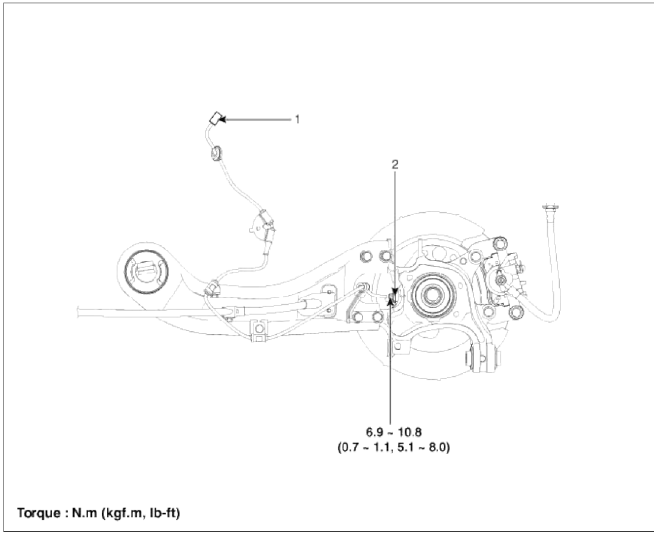

Components and Components Location

 Components

  1. Rear wheel speed sensor connector
  2. Rear wheel speed sensor

Repair procedures

Removal

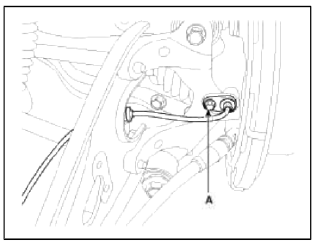

1. Remove the rear wheel speed sensor mounting bolt (A).

Tightening torque: 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

2. Remove the luggage side trim the disconnect the rear wheel speed sensor

2. Remove the luggage side trim the disconnect the rear wheel speed sensor connector.

3. Installation is the reverse of removal.

Inspection

1. Measure the output voltage between the terminal of the wheel speed sensor and the body ground.

CAUTION

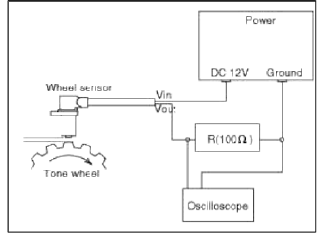

In order to protect the wheel speed sensor, when measuring output voltage, a 100 Ω resistor must be used as shown.

2. Compare the change of the output voltage of the wheel speed sensor to the

2. Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown below.

V_low: 0.59V ~ 0.84V

V_low: 0.59V ~ 0.84V

V_high: 1.18V ~ 1.68V

Frequency range : 1 ~ 2,500Hz
