Kia Sportage: Fuse/relay panel description

Kia Sportage - Fifth generation (NQ5) - (2022-2024) - Owner's Manual / Maintenance / Fuses / Fuse/relay panel description

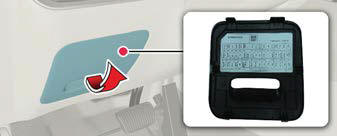

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle.

It is accurate at the time of printing.

When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Driver's side fuse panel

Driver's side fuse panel

Driver's side fuse panel

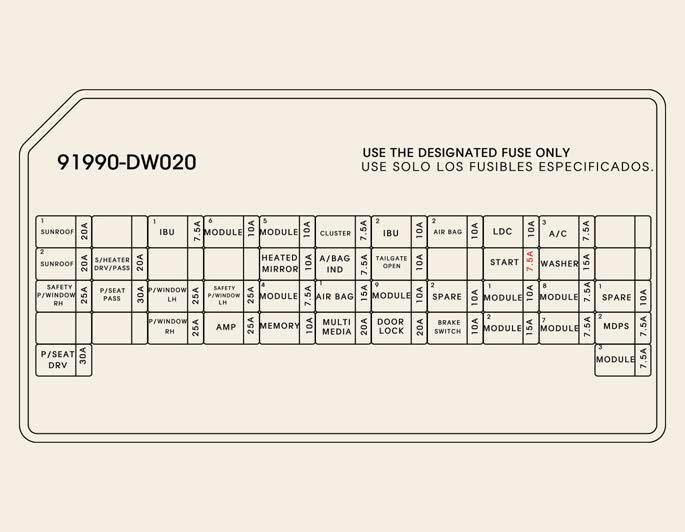

ICU Junction Block

ICU Junction Block

ICU Junction Block

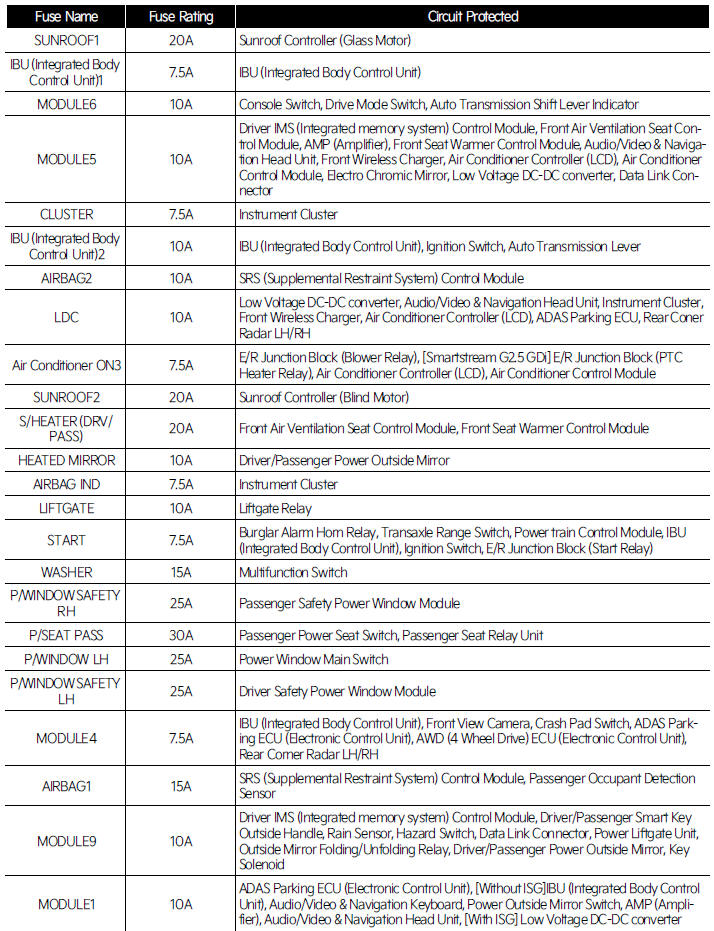

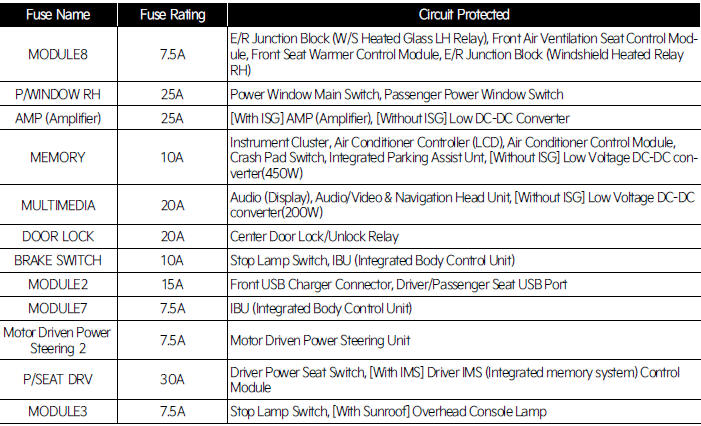

Fuse Name/ Fuse Rating/ Circuit Protected

SUNROOF1/ 20A/ Sunroof Controller (Glass Motor)

IBU (Integrated Body Control Unit)1/ 7.5A / IBU (Integrated Body Control Unit)

MODULE6 /10A/ Console Switch, Drive Mode Switch, Auto Transmission Shift Lever Indicator

MODULE5/ 10A/ Driver IMS (Integrated memory system) Control Module, Front Air Ventilation Seat Control Module, AMP (Amplifier), Front Seat Warmer Control Module, Audio/Video & Navigation Head Unit, Front Wireless Charger, Air Conditioner Controller (LCD), Air Conditioner Control Module, Electro Chromic Mirror, Low Voltage DC-DC converter, Data Link Connector

CLUSTER/ 7.5A/ Instrument Cluster

IBU (Integrated Body Control Unit)2/ 10A/ IBU (Integrated Body Control Unit), Ignition Switch, Auto Transmission Lever

AIRBAG2/ 10A/ SRS (Supplemental Restraint System) Control Module

LDC/ 10A/ Low Voltage DC-DC converter, Audio/Video & Navigation Head Unit, Instrument Cluster, Front Wireless Charger, Air Conditioner Controller (LCD), ADAS Parking ECU, Rear Coner Radar LH/RH

Air Conditioner ON3/ 7.5A/ E/R Junction Block (Blower Relay), [Smartstream G2.5 GDi] E/R Junction Block (PTC Heater Relay), Air Conditioner Controller (LCD), Air Conditioner Control Module

SUNROOF2/ 20A/ Sunroof Controller (Blind Motor)

S/HEATER (DRV/ PASS)/ 20A/ Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module

HEATED MIRROR/ 10A/ Driver/Passenger Power Outside Mirror

AIRBAG IND/ 7.5A/ Instrument Cluster

LIFTGATE/10A/  Liftgate Relay

START/ 7.5A/ Burglar Alarm Horn Relay, Transaxle Range Switch, Power train Control Module, IBU (Integrated Body Control Unit), Ignition Switch, E/R Junction Block (Start Relay)

WASHER/ 15A/ Multifunction Switch

P/WINDOW SAFETY RH / 25A/  Passenger Safety Power Window Module

P/SEAT PASS/ 30A/ Passenger Power Seat Switch, Passenger Seat Relay Unit

P/WINDOW LH/ 25A/ Power Window Main Switch

P/WINDOW SAFETY LH/ 25A/ Driver Safety Power Window Module

MODULE4/ 7.5A/ IBU (Integrated Body Control Unit), Front View Camera, Crash Pad Switch, ADAS Parking ECU (Electronic Control Unit), AWD (4 Wheel Drive) ECU (Electronic Control Unit), Rear Corner Radar LH/RH

AIRBAG1/ 15A/ SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor

MODULE9/ 10A/ Driver IMS (Integrated memory system) Control Module, Driver/Passenger Smart Key Outside Handle, Rain Sensor, Hazard Switch, Data Link Connector, Power Liftgate Unit, Outside Mirror Folding/Unfolding Relay, Driver/Passenger Power Outside Mirror, Key Solenoid

MODULE1/ 10A/ ADAS Parking ECU (Electronic Control Unit), [Without ISG]IBU (Integrated Body Control Unit), Audio/Video & Navigation Keyboard, Power Outside Mirror Switch, AMP (Amplifier), Audio/Video & Navigation Head Unit, [With ISG] Low Voltage DC-DC converter

MODULE8/ 7.5A/ E/R Junction Block (W/S Heated Glass LH Relay), Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, E/R Junction Block (Windshield Heated Relay RH)

P/WINDOW RH/ 25A/ Power Window Main Switch, Passenger Power Window Switch

AMP (Amplifier)/ 25A/ [With ISG] AMP (Amplifier), [Without ISG] Low DC-DC Converter

MEMORY/ 10A/ Instrument Cluster, Air Conditioner Controller (LCD), Air Conditioner Control Module, Crash Pad Switch, Integrated Parking Assist Unt, [Without ISG] Low Voltage DC-DC converter( 450W)

MULTIMEDIA/ 20A/ Audio (Display), Audio/Video & Navigation Head Unit, [Without ISG] Low Voltage DC-DC converter(200W)

DOOR LOCK/ 20A/ Center Door Lock/Unlock Relay

BRAKE SWITCH/ 10A/ Stop Lamp Switch, IBU (Integrated Body Control Unit)

MODULE2/ 15A/ Front USB Charger Connector, Driver/Passenger Seat USB Port

MODULE7/ 7.5A/ IBU (Integrated Body Control Unit)

Motor Driven Power Steering 2/ 7.5A/ Motor Driven Power Steering Unit

P/SEAT DRV/ 30A/ Driver Power Seat Switch, [With IMS] Driver IMS (Integrated memory system) Control Module

MODULE3/ 7.5A/ Stop Lamp Switch, [With Sunroof] Overhead Console Lamp
