Kia Sportage: Automatic turn off function

Kia Sportage - Fifth generation (NQ5) - (2022-2024) - Owner's Manual / Features of your vehicle / Interior lights / Automatic turn off function

This vehicle is equipped with lights throughout the vehicle to illuminate the interior.

CAUTION

Do not use the interior lights for extended periods when the engine is not running.

It may cause battery discharge.

WARNING

Do not use the interior lights when driving in the dark. Accidents could happen because the view may be obscured by interior lights.

Automatic turn off function

The interior lights automatically turn off approximately 20 minutes after the ENGINE START/STOP button is turned off, if the lights are in the ON position.

If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 5 seconds after the system is armed.

Map lamp

Type A
Type A

Type B
Type B

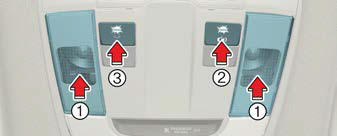

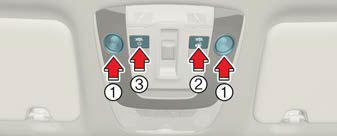

  • Press the lens (1) to turn ON the map lamp.

    To turn the map lamp OFF press the lens (1) again.

  • (2): DOOR mode
  • The map lamp and room lamp come on when a door is opened.

    The lamps go out after approximately 30 seconds.

  • The map lamp and room lamp come on for approximately 30 seconds when doors are unlocked with a smart key as long as the doors are not opened.
  • The map lamp and room lamp will stay on for approximately 20 minutes if a door is opened with the ENGINE START/STOP button in the ACC or OFF position.
  • The map lamp and room lamp will stay on continuously if the door is opened with the ENGINE START/ STOP button in the ON position.
  • The map lamp and room lamp will go out immediately if the ENGINE START/STOP button is changed to the ON position or all doors are locked.
  • To turn off the DOOR mode, press the DOOR button (2) once again (not pressed).
  • (3): Press this switch to turn the front and rear room lamps on and off.

NOTICE

The DOOR mode and ROOM mode can not be selected at a time.

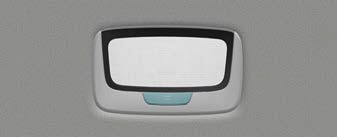

Room lamp (if equipped)

Room lamp (if equipped)

Press the switch to turn the room lamp on and off.

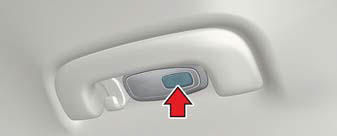

Personal lamp

Personal lamp

Press the switch to turn the room lamp on and off.
