Kia Sportage: Controlling fan speed

Kia Sportage - Fifth generation (NQ5) - (2022-2024) - Owner's Manual / Features of your vehicle / Automatic climate control system / Controlling fan speed

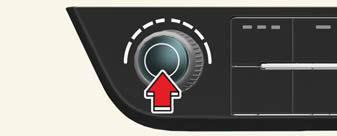

The fan speed can be set to the desired speed by operating the fan speed control button.

To change the fan speed:

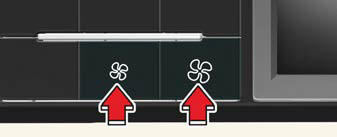

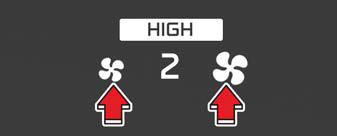

  • Press button right for higher speed, or press button left for lower speed.

Type A (button)
Type A (button)

Type B (control panel)
Type B (control panel)

To turn the fan speed control off:

  • Press the front blower OFF button.

Air conditioning (A/C)

Air conditioning (A/C)

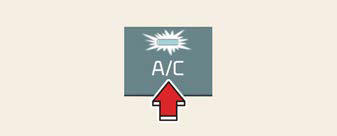

  • Press the A/C button to turn the air conditioning system on (indicator light will illuminate).
  • Press the button again to turn the air conditioning system off.


Reduced Visibility

Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle, which may fog the glass and obscure visibility.


Recirculated Air

Continued use of the climate control system in the recirculated air position can cause drowsiness or sleepiness, and loss of vehicle control. Set the air intake control to the outside (fresh) air position as much as possible while driving.


Sleeping with A/C on

Do not sleep in a vehicle with the air conditioning or heating on as this may cause serious harm or death due to a drop in the oxygen level and/or body temperature.

Turning off the front air climate control

Type A (button)
Type A (button)

Type B (control panel)
Type B (control panel)

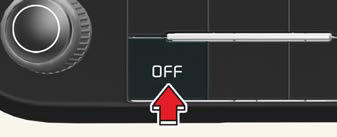

  • Press the OFF button to turn off the front and rear air climate control system.

    However, you can still operate the mode and air intake buttons as long as the ENGINE START/STOP button is in the ON position.

Scheduled Ventilation Control

The Scheduled Ventilation Control releases hot air in the vehicle to lower cabin temperature before getting in the vehicle.

Depending on the outside ambient temperature, the blower is operated for 5 to 15 minutes while the vehicle is parked.

Turning Schedule Ventilation

Control On or Off

The Schedule Ventilation Control can be turned on and off by selecting 'Setup ? Vehicle Settings ? Automatic Ventilation ? Scheduled Ventilation Control' from the infotainment system screen. Also, the starting time can be set within 24 hours. Schedule Ventilation Control operates only once when the feature is set.
