Kia Sportage: Waterproof and rustproof

Kia Sportage - Second generation (JEKM) (2005-2015) - Body Workshop Manual / Waterproof and rustproof

Sealing

To waterproof and rustproof the vehicle, apply sealer on assembled area of the body panel and on any areas in contact with the body, such as doors (inner/outer), hood (inner/outer), and tail gate (inner/outer).

Body (Floor)

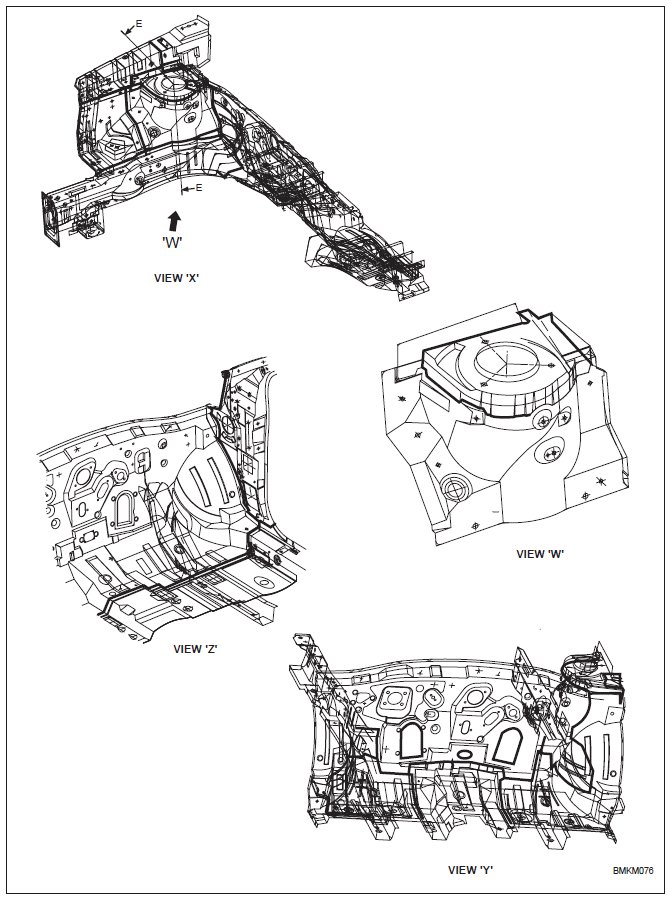

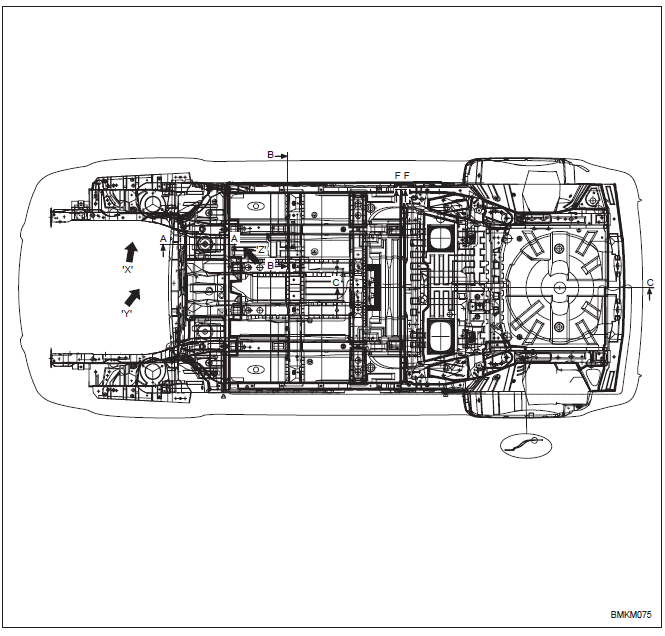

View

View

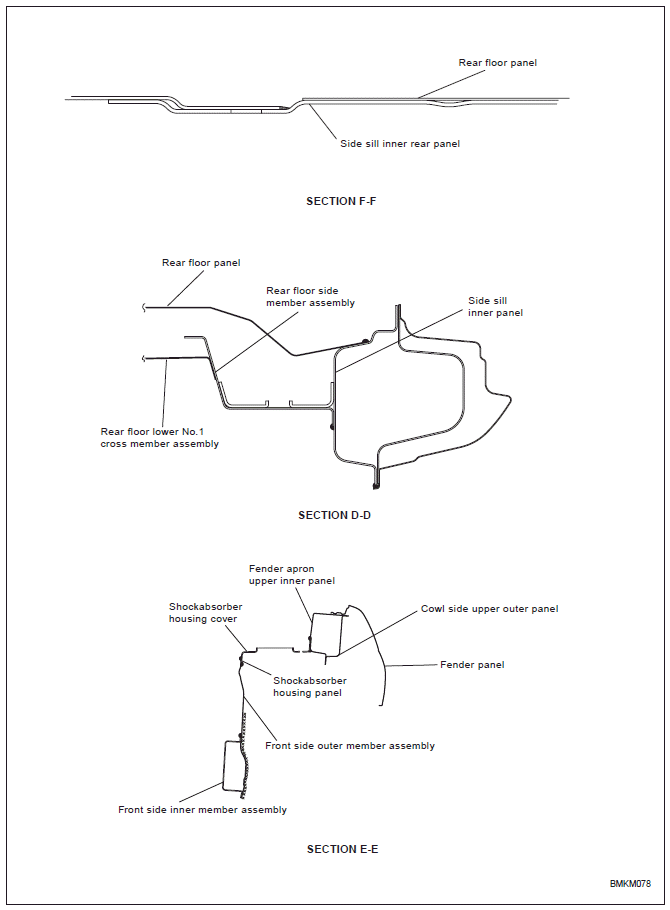

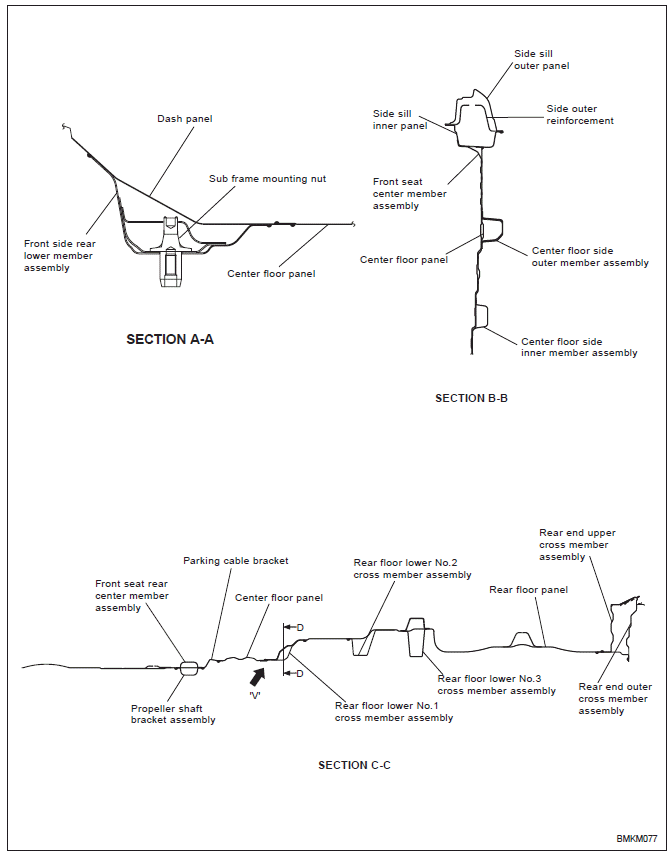

Section

Section

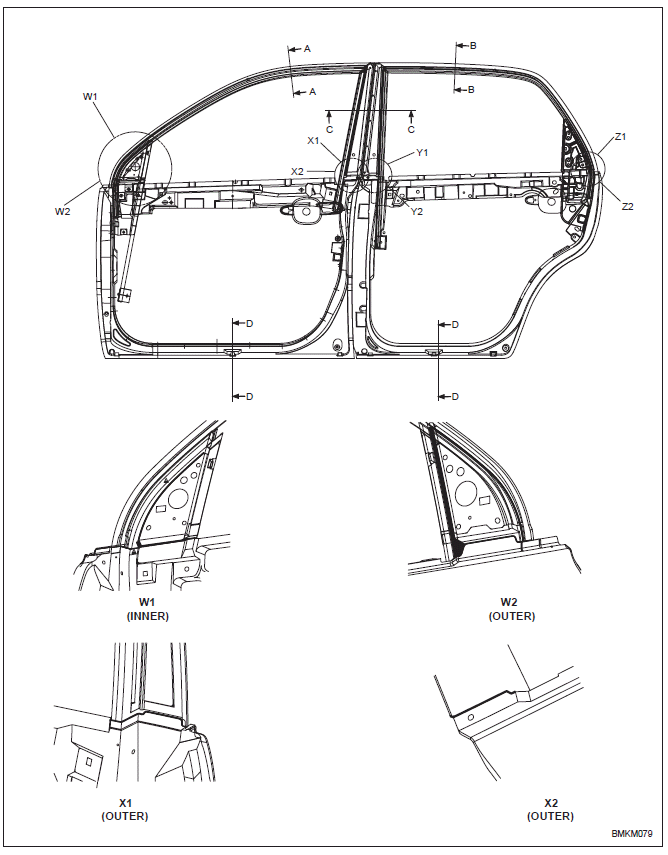

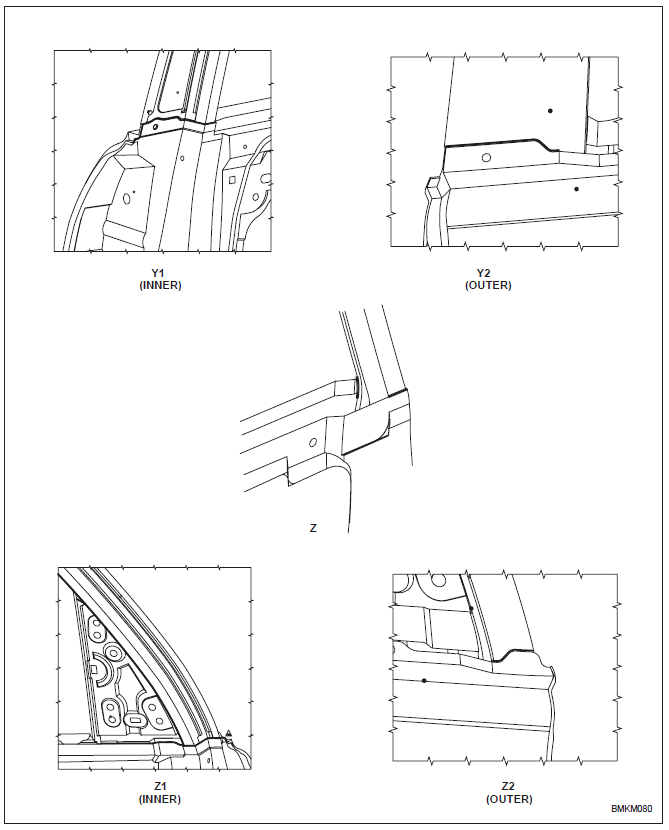

Door

Door

View

View

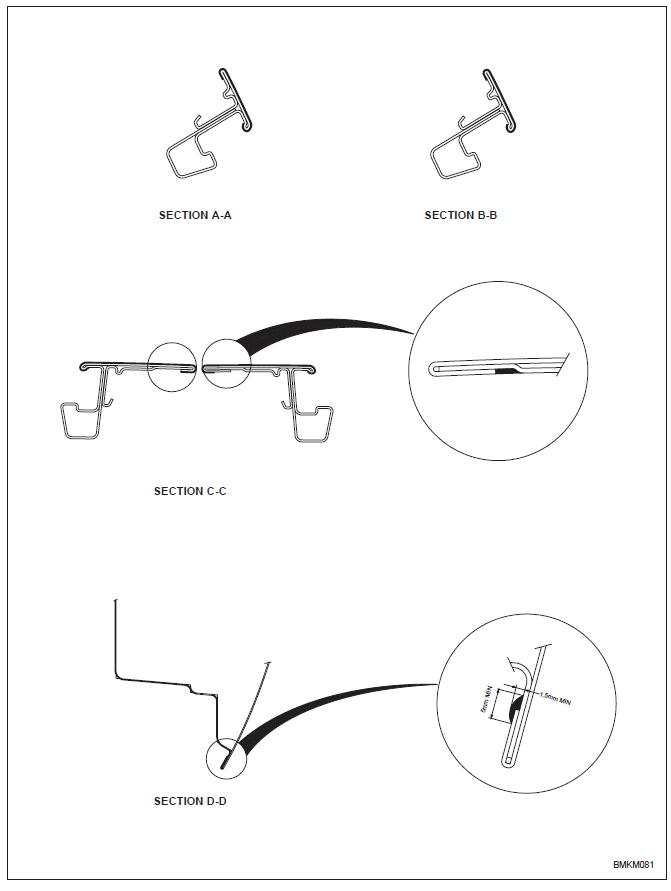

Section

Section

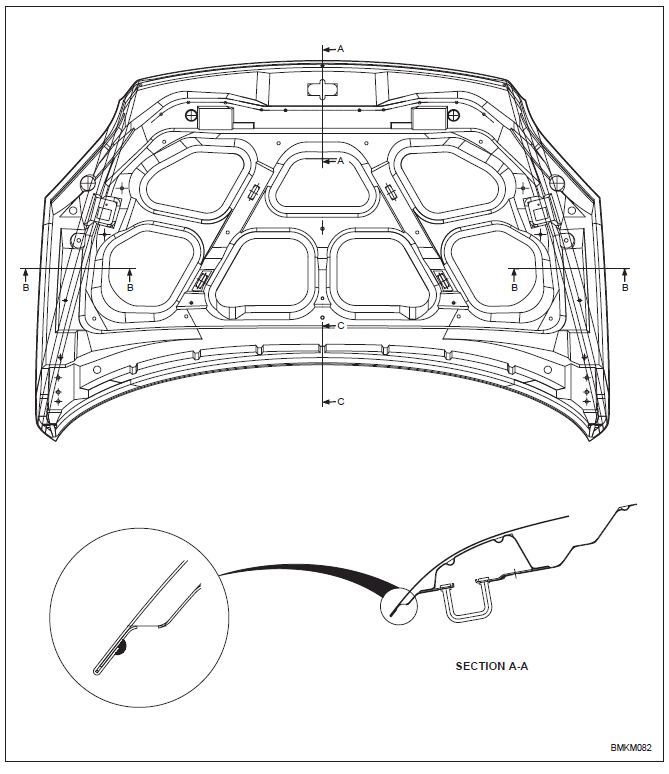

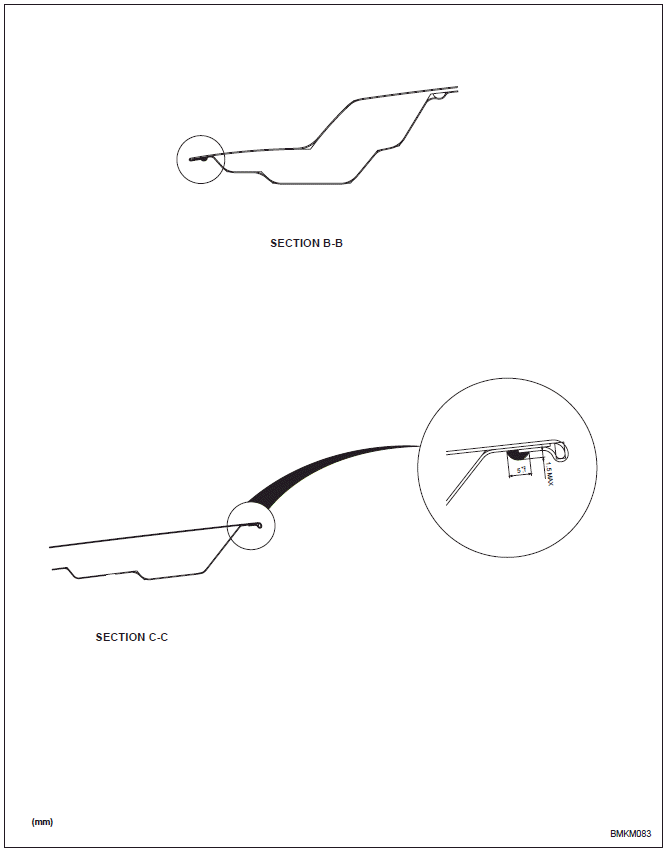

Hood

Hood

Section

Section

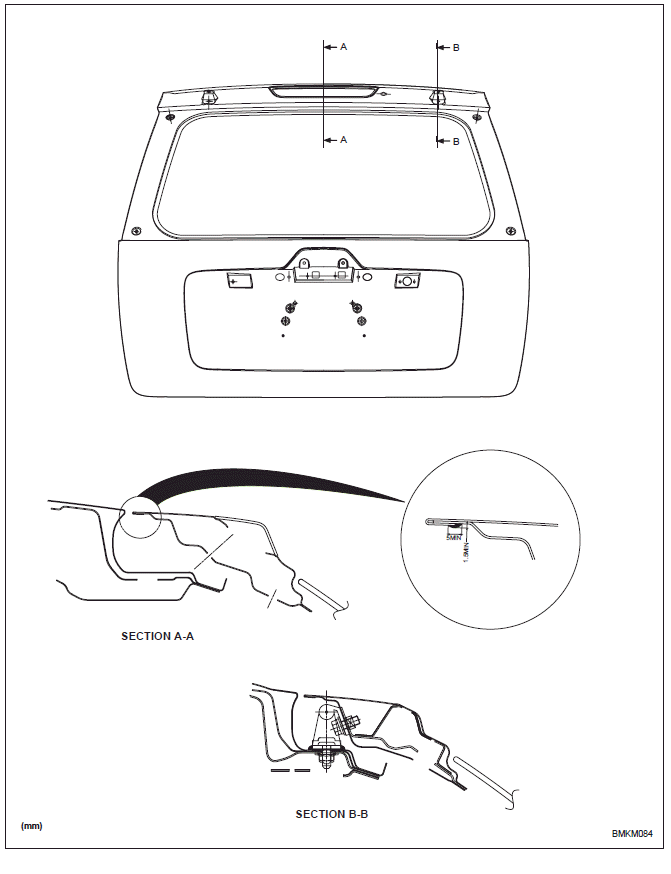

Tail gate

Tail gate

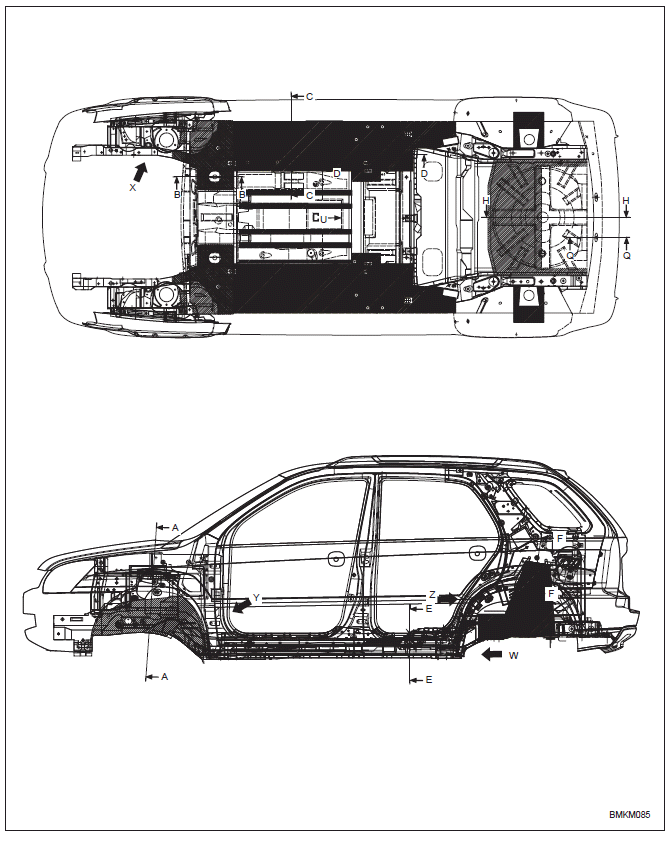

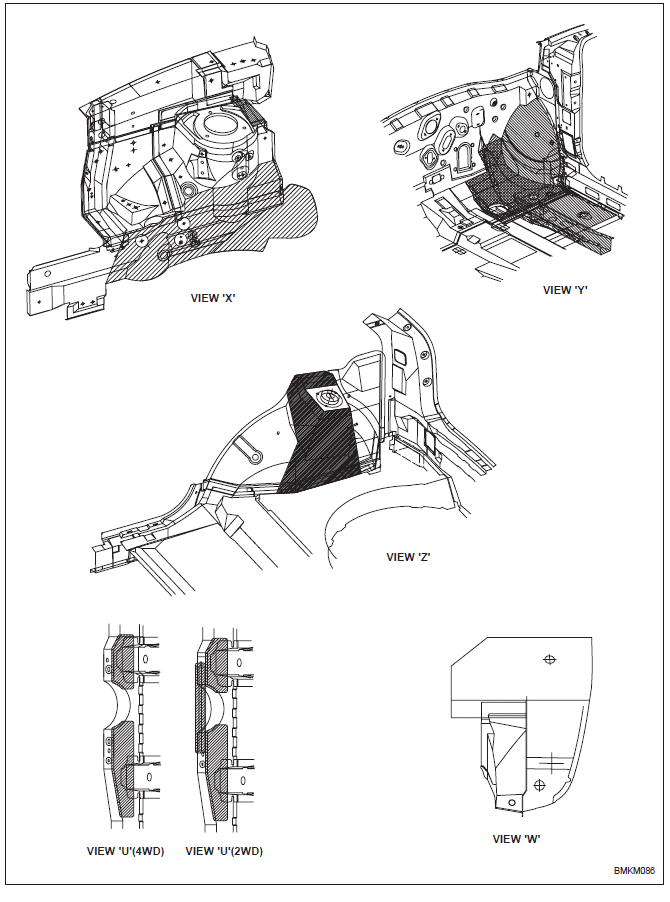

Under coating

Under coating

View

View

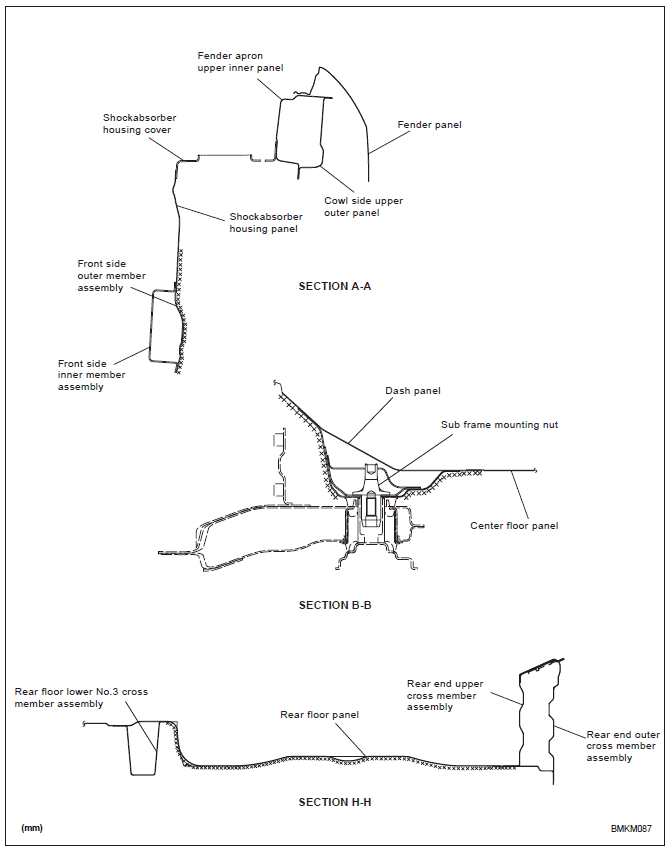

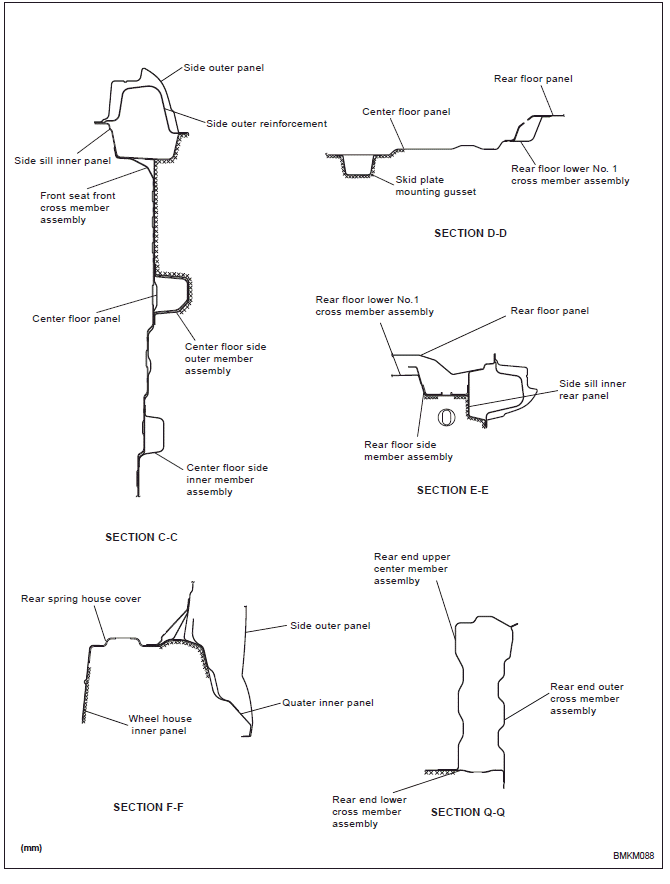

Section

Section

Applying rustproofing material

Applying rustproofing material

Body

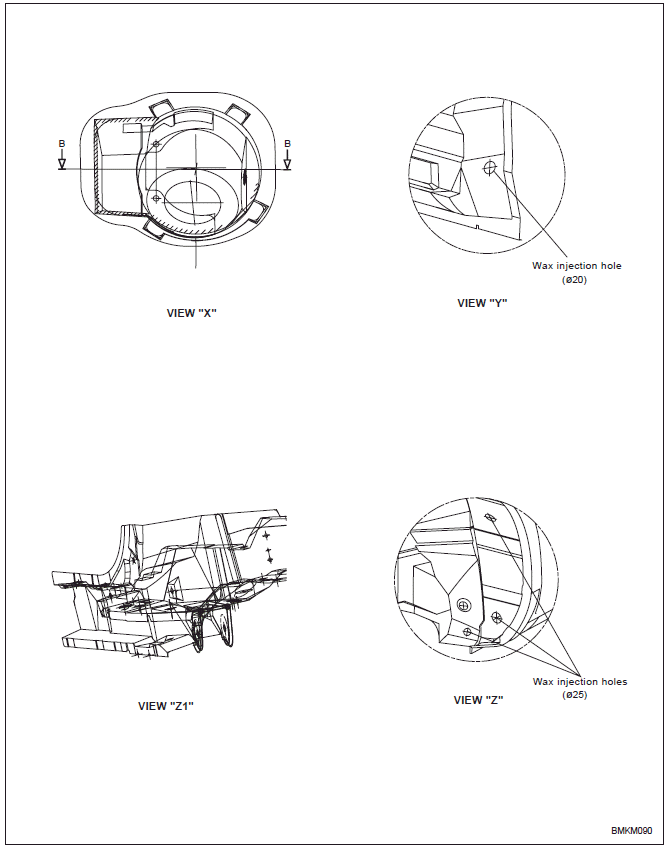

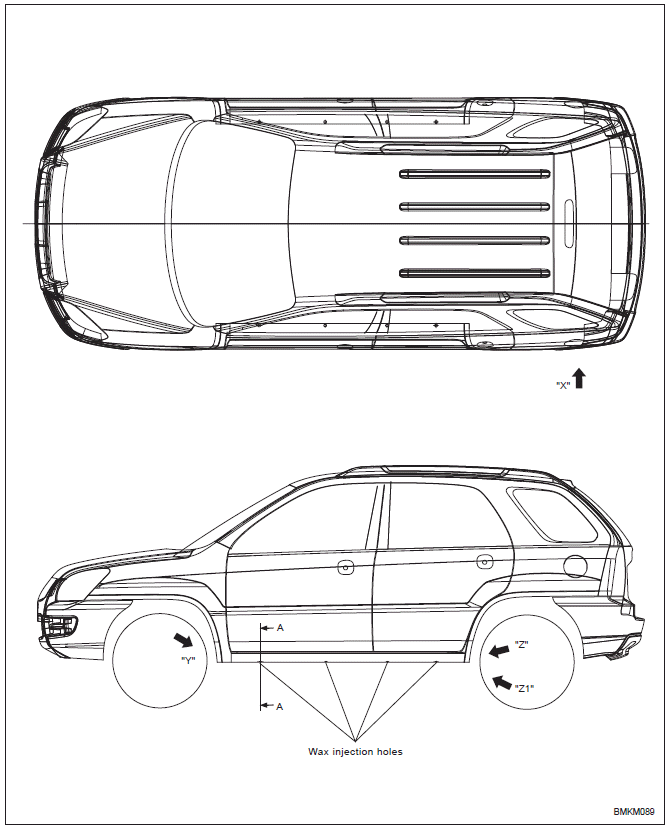

View

View

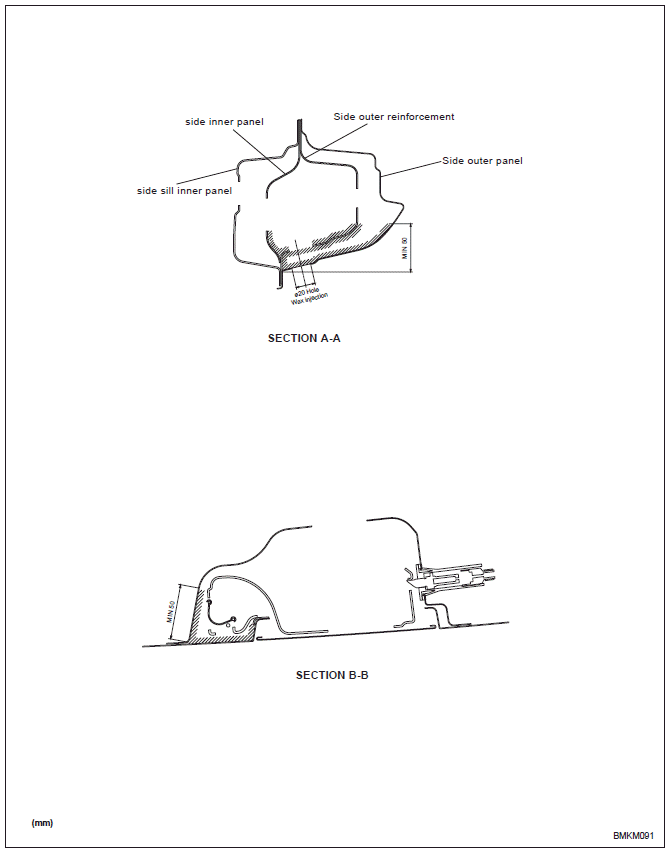

Section

Section

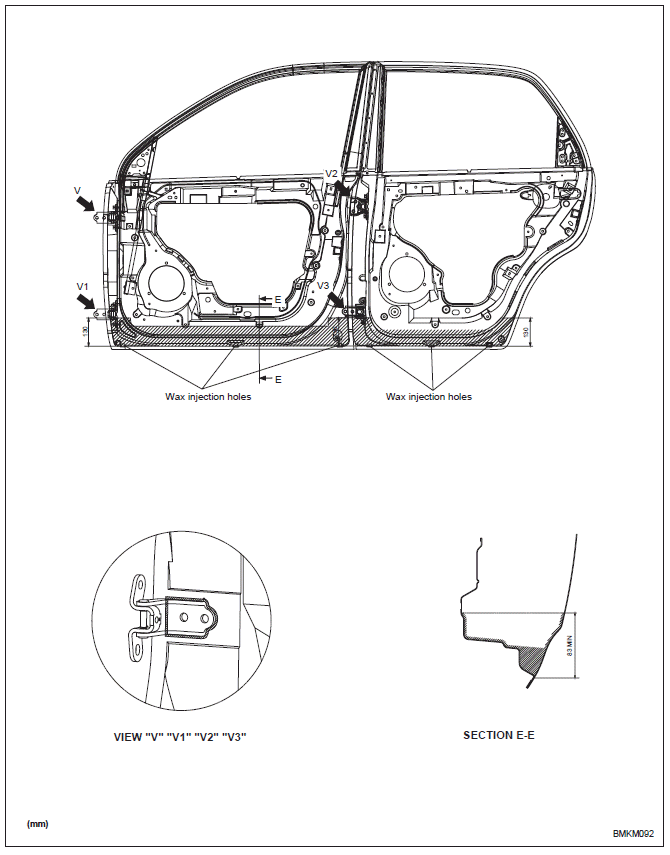

Door

Door

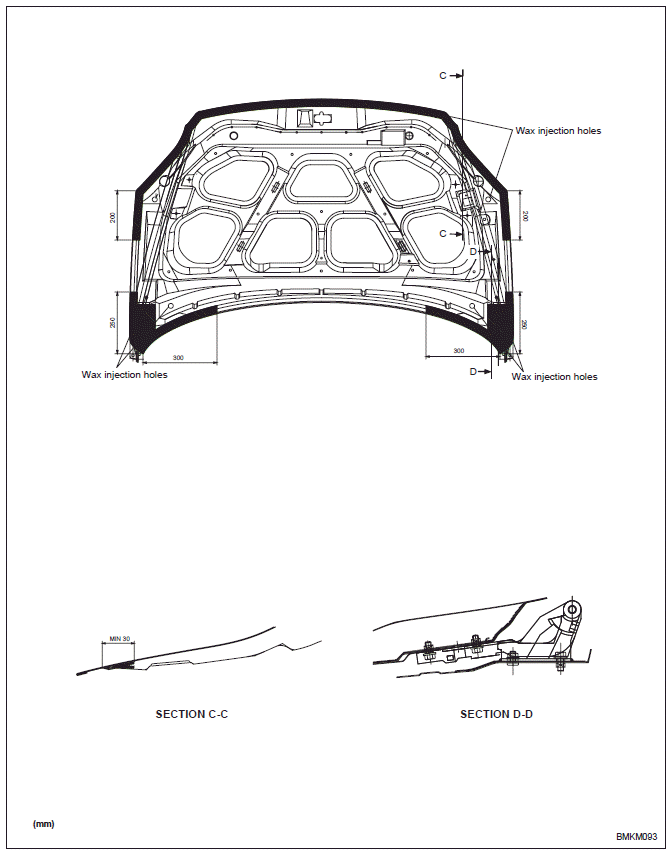

Hood

Hood

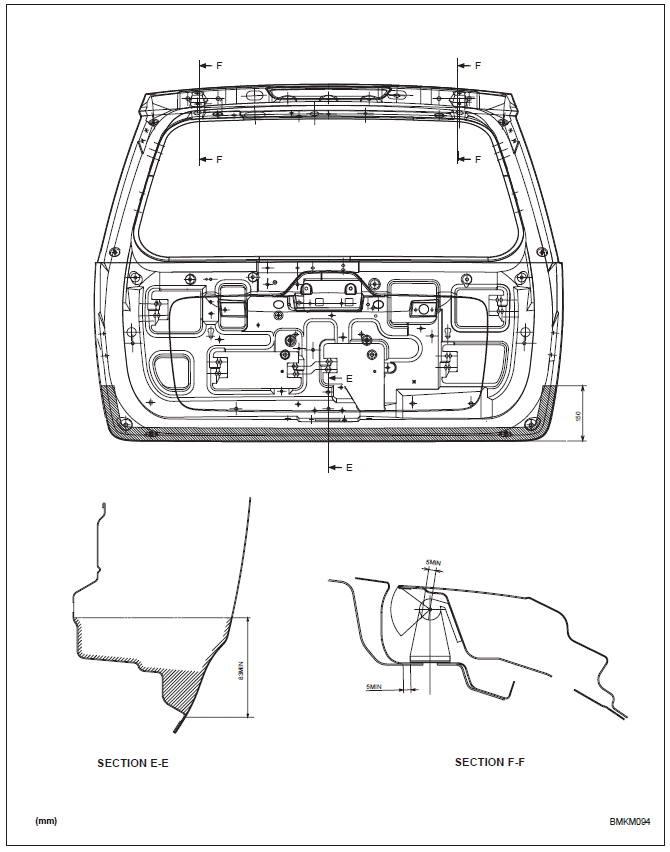

Tail gate

Tail gate
