Kia Sportage: Closing the liftgate

Kia Sportage - Fifth generation (NQ5) - (2022-2024) - Owner's Manual / Features of your vehicle / Power liftgate / Closing the liftgate

The power liftgate will close automatically by doing one of the following:

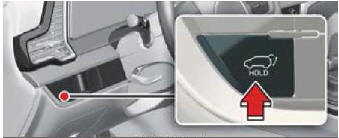

  • When the liftgate is opened, press and hold the power liftgate open / close button. The liftgate will close automatically and the warning chime will sound.
  • Press the power liftgate open/close button until the liftgate is closed completely.

    If the liftgate open/close button is not pressed while closing, power liftgate will stop operate and warning chime will sound for approximately 5 seconds.

  • For emergency stop while power liftgate operating, press the power liftgate open/close button shortly.

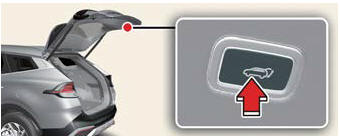

  • Press the power liftgate close button when the liftgate is opened.

The liftgate will close automatically
The liftgate will close automatically

Power liftgate non-opening conditions

The power liftgate will not open automatically, when the vehicle is moving more than 2 mph (3 km/h).

NOTICE

The chime will sound continuously if you drive over 2 mph (3 km/h) with the liftgate opened. Stop your vehicle immediately at a safe place and check if your liftgate is opened.

CAUTION

Do not operate the power liftgate more than 5 times continuously.

It may damage the power liftgate system.

If the spindle is strained due to continuous operation, the chime will sound 3 times and the power liftgate will not operate. At this time, stop operating the liftgate and leave it for more than 1 minute.

NOTICE

The power liftgate can be operated when the engine is not running. However the power liftgate operation consumes large amounts of vehicle electric power. To prevent the battery from being discharged, do not operate it excessively e.g.: more than approximately 10 times repeatedly.

To prevent the battery from being discharged, do not leave the power liftgate in the open position for a long time.

Do not modify or repair any part of the power liftgate by yourself, visit an authorized Kia dealer.

When jacking up the vehicle to change a tire or repair the vehicle, do not operate the power liftgate. This could cause the power liftgate to operate improperly.

In cold and wet climates, the power liftgate may not work properly due to freezing conditions.

Automatic reversal

During power opening and closing if the power liftgate is blocked by an object or part of the body, the power liftgate will detect the resistance.

  • If the resistance is detected while opening the liftgate, it will stop and move in the opposite direction.
  • If the resistance is detected while closing the liftgate, it will stop and move in the opposite direction.

However, if the resistance is weak such as from an object that is thin or soft, or the liftgate is near the latched position, the automatic stop and reversal may not detect the resistance. If the automatic reversal feature operates continuously more than twice during opening or closing operation, the power liftgate may stop at that position. At this time, check if there are no objects near the liftgate, and operate the liftgate automatically again.

NOTICE

Never intentionally place any object or part of your body in the path of the power liftgate to make sure the automatic reversal operates.

Never operate power liftgate attached with any heavy objects (ex. bicycles).

It could damage the power liftgate
