Kia Sportage: Forward Collision-Avoidance Assist (FCA) (Front Camera Only)
Kia Sportage - Fifth generation (NQ5) - (2022-2024) - Owner's Manual / Driving your vehicle / Forward Collision-Avoidance Assist (FCA) (Front Camera Only)

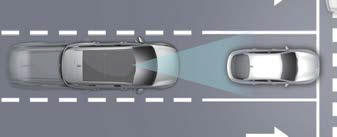

Forward Collision-Avoidance Assist is designed to help detect and monitor the vehicle ahead or help detect a pedestrian or cyclist in the roadway and warn the driver that a collision is imminent with a warning message and an audible warning, apply emergency braking.

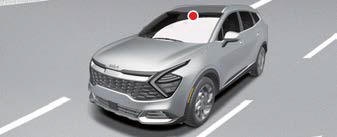

Detecting sensor
Front view camera
Refer to the picture above for the detailed location of the detecting sensor.
CAUTION
- Never disassemble the detecting sensor or sensor assembly, or apply any impact on it.
- If the detecting sensors have been replaced or repaired, have the vehicle inspected by an authorized Kia dealer.
- Never install any accessories or stickers on the front windshield, or tint the front windshield.
- Pay extreme caution to keep the front view camera dry.
- Never place any reflective objects (i.e.
white paper, mirror) over the dashboard.
- Forward Collision-Avoidance Assist settings
- Forward Collision-Avoidance Assist operation
- Forward Collision-Avoidance Assist malfunction and limitations
