Description and Operation

 Description

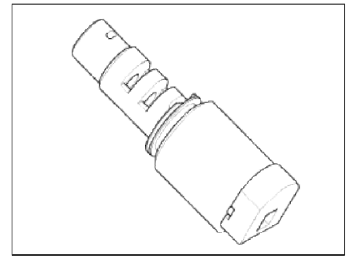

Line pressure control solenoid valve is attached to the valve body. This variable force solenoid valve directly controls the hydraulic pressure inside the line pressure.

Specifications

Specifications

 Specifications

Direct control VFS [LINE Pressure]

Control type : Normal low type

Schematic Diagrams

Schematic Diagrams

 Circuit Diagram

Repair procedures

Repair procedures

Inspection

1. Turn ignition switch OFF.

2. Disconnect the oil temperature sensor connector.

3. Measure resistance between sensor signal terminal and sensor ground terminal.

4. Check that the resistance is within the specification.

Removal

NOTE

Replacing an on/off solenoid valve (SS-A, SS-B) does not require additional hydraulic pressure adjustment; however, the hydraulic pressure will need to be adjusted after replacing the VFS solenoid valve. If replacing the VFS solenoid valve; also replace the valve body assembly. (Refer to "Valve Body" in this group)

35R Clutch Control Solenoid Valve (35R/C_VFS)

Description and Operation

 Description

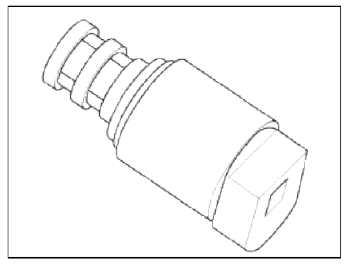

35R clutch control solenoid valve(35R/C_VFS) is attached to the valve body. This variable force solenoid valve directly controls the hydraulic pressure inside the 35R clutch.

Specifications

Specifications

 Specifications

Direct control VFS [35R/C]

Control type : Normal low type

Schematic Diagrams

Schematic Diagrams

 Circuit Diagram

Repair procedures

Repair procedures

Inspection

1. Turn ignition switch OFF.

2. Disconnect the oil temperature sensor connector.

3. Measure resistance between sensor signal terminal and sensor ground terminal.

4. Check that the resistance is within the specification.

Removal

NOTE

Replacing an on/off solenoid valve (SS-A, SS-B) does not require additional hydraulic pressure adjustment; however, the hydraulic pressure will need to be adjusted after replacing the VFS solenoid valve. If replacing the VFS solenoid valve; also replace the valve body assembly. (Refer to "Valve Body" in this group)
