Kia Sportage: Operating windshield washers

- Move the wiper speed control switch
to the OFF position.

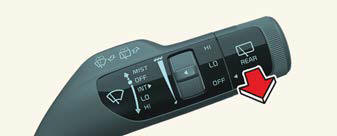

- Pull the lever gently toward you to
spray washer fluid on the windshield
and to run the wipers 1-3 cycles. Use
this function when the windshield is
dirty. The spray and wiper operation will continue until
you release the
lever.
If the washer does not work, check the
washer fluid level. If the fluid level is not
sufficient, you will need to add appropriate
non-abrasive windshield washer
fluid to the washer reservoir.
The reservoir filler neck is located in the
front of the engine compartment on the
passenger side.
CAUTION
To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
WARNING
Do not use the washer in freezing temperatures
without first warming the
windshield with the defrosters; the
washer solution could freeze on the
windshield and obscure your vision.
CAUTION
- To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is dry.
- To prevent damage to the wiper
blades, do not use gasoline, kerosene,
paint thinner, or other solvents on or
near them.
- To prevent damage to the wiper arms
and other components, do not
attempt to move the wipers manually.
- To prevent possible damage to the
wipers and washer system, use antifreezing
washer fluids in the winter
season or cold weather.
