Kia Sportage: Paddle shifter

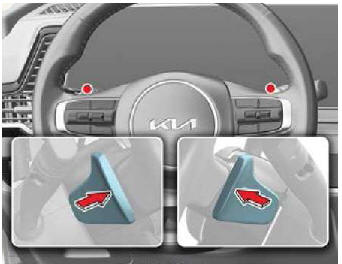

Paddle shifter (if equipped)
The paddle shift function is available
when the shift lever is in the D (Drive)
position or the manual mode.
![Paddle shifter (if equipped)](images/books/1538/8/index.12.jpg)
With the shift lever in the D position
Pull the [+] or [-] paddle shifter once to
shift up or down one gear and the system
changes f r om automatic mode to
manual mode.
Paddle shifter doesn't work at low vehicle
speed.
To change back to automatic shift mode
f r om manual shift mode, do one of the
followings:
- Pull the [+] paddle shifter for more
than one second
- Move the shift lever f r om D (Drive) to
manual gate and return it to D position
again
The manual shift mode also changes
back to automatic shift mode in one of
following situations
- When the accelerator pedal is gently
depressed for more than 6 seconds
while driving
- When the vehicle stops
With the shift lever in the manual
mode
Pull the [+] or [-] paddle shifter once to
shift up or down one gear.
NOTICE
If you pull the [+] and [-] paddle shifters
at the same time, you cannot shift the
gear.
Shift lock system
For your safety, the automatic transmission
has a shift lock system which prevents
shifting the transmission f r om P
(Park) into R (Reverse) unless the brake
pedal is depressed.
To shift the transmission f r om P (Park)
into R (Reverse):
- Depress and hold the brake pedal.
- Start the engine or turn the ignition
switch or ENGINE START/STOP button
to the ON position.
- Move the shift lever.
If the brake pedal is repeatedly
depressed and released with the shift
lever in the P (Park) position, a chattering
noise near the shift lever may be
heard. This is a normal condition.
WARNING
Always fully depress the brake pedal
before and while shifting out of the P
(Park) position into another position to
avoid inadvertent motion of the vehicle
which could injure persons in or around
the vehicle.

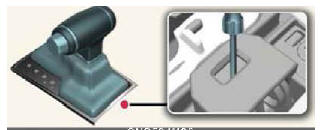

Shift lock system
![Shift lock system](images/books/1538/8/index.13.jpg)
If the shift lever cannot be moved f r om
the P (Park) position into R (Reverse)
position with the brake pedal depressed,
continue depressing the brake, then do
the following:
- Place the ignition switch or ENGINE
START/STOP button in the LOCK/OFF
position.
- Apply the parking brake.
- Carefully remove the knob boots covering
the shift-lock release access
hole.
- Insert a tool (e.g., flathead screwdriver)
into the access hole and press
down on the tool.
- Move the shift lever.
- Remove the tool from the shift - lock
override access hole then install the
knob boots.
- If the shift lever does not move even
after performing this procedure, have
the system inspected by an authorized
Kia dealer.
