Kia Sportage: Power sunshade

Kia Sportage - Fifth generation (NQ5) - (2022-2024) - Owner's Manual / Features of your vehicle / Panoramic sunroof / Power sunshade

Panoramic sunroof (if equipped)

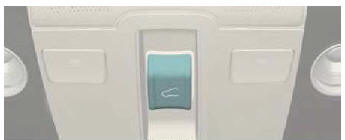

If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof switch located on the overhead console.

Panoramic sunroof (if equipped)

The sunroof can only be operated when the ignition switch or ENGINE START/ STOP button is in the ON or START position.

The sunroof can be operated for approximately 3 minutes after the ignition switch or ENGINE START/STOP button is in the ACC or LOCK/OFF position.

However, if the front door is open, the sunroof cannot be operated even within the 3 minute period.

NOTICE

  • Never adjust the sunroof or sunshade while driving. This could result in loss of control and an accident that may cause injury, or property damage.
  • Do not leave the engine running and the key in your vehicle with unsupervised children. Unattended children could operate the sunroof, which could result in serious injury.
  • Do not sit on the top of the vehicle. It may cause injury or vehicle damage.

NOTICE

Do not operate the sunroof when roof bars are installed on the vehicle or when there is luggage on the roof.

Power sunshade

Power sunshade

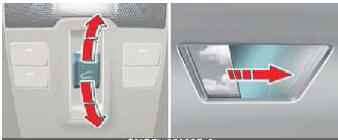

Use the power sunshade to block direct sunlight coming through the sunroof glass.

  • Push the sunroof switch rearward to the first detent position, the power sunshade automatically slides open.
  • Push the sunroof switch forward to the first detent position, the power sunshade automatically closes. However, if the sunroof glass is open, the glass will close first.

To stop the power sunshade at any point, push the sunroof switch in any direction.

NOTICE

  • Do not pull or push the power sunshade by hand as such action may damage the power sunshade or cause it to malfunction.
  • Wrinkles formed on the power sunshades are normal due to material characteristic.

Tilt open/close

Tilt open/close

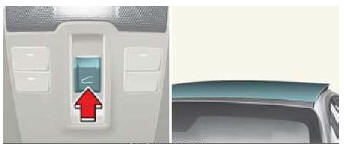

  • Push the sunroof switch upward, the sunroof glass tilts open. However, if the power sunshade is close, the sunshade will open first.
  • Push the sunroof switch upward or forward when the sunroof glass is tilt opened, the sunroof glass automatically closes.

To stop the sunroof movement at any point, push the sunroof switch in any direction.
