Specifications

 Specifications

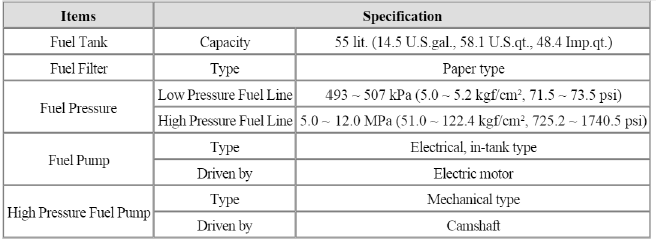

Fuel Delivery System

Sensors

Sensors

Manifold Absolute Pressure Sensor (MAPS) #1

  Type: Piezo-resistive pressure sensor type

  Specification

Intake Air Temperature Sensor (IATS)

Intake Air Temperature Sensor (IATS)

  Type: Thermistor type

  Specification

Manifold Absolute Pressure Sensor (MAPS) #2

Manifold Absolute Pressure Sensor (MAPS) #2

  Type: Piezo-resistive pressure sensor type

  Specification

Engine Coolant Temperature Sensor (ECTS)

Engine Coolant Temperature Sensor (ECTS)

  Type: Thermistor type

  Specification

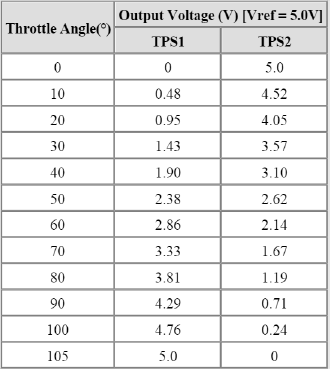

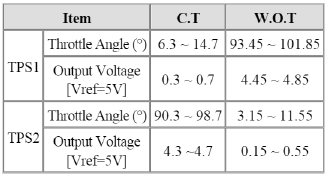

Throttle Position Sensor (TPS) [integrated into ETC Module]

Throttle Position Sensor (TPS) [integrated into ETC Module]

  Type: Variable resistor type

  Specification

Crankshaft Position Sensor (CKPS)

Crankshaft Position Sensor (CKPS)

  Type: Hall effect type

Camshaft Position Sensor (CMPS)

  Type: Hall effect type

Knock Sensor (KS)

  Type: Piezo-electricity type

  Specification

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]

  Type: Zirconia (ZrO2) [Linear] Type

  Specification

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]

Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]

  Type: Zirconia (ZrO2) [Binary] Type

  Specification

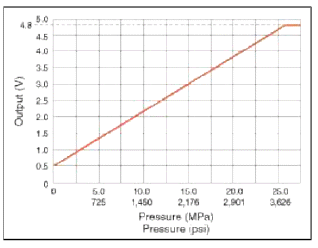

Rail Pressure Sensor (RPS)

Rail Pressure Sensor (RPS)

  Type: Piezo-electricity type

  Specification

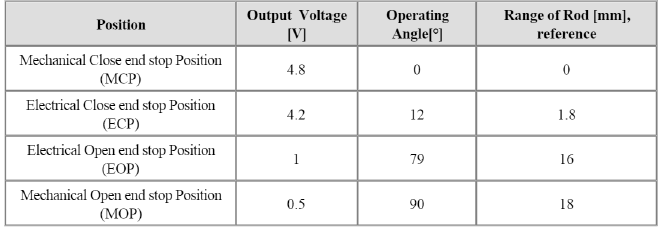

EWGA Position Sensor [integrated into Electric Waste Gate Actuator (EWGA) ]

EWGA Position Sensor [integrated into Electric Waste Gate Actuator (EWGA) ]

  Type: Hall effect. NON-Contact type

  Specification

CVVT Oil Temperature Sensor (OTS)

CVVT Oil Temperature Sensor (OTS)

  Type: Thermistor type

  Specification

Accelerator Position Sensor (APS)

Accelerator Position Sensor (APS)

  Type: Variable resistor type

  Specification

Fuel Tank Pressure Sensor (FTPS)

Fuel Tank Pressure Sensor (FTPS)

  Type: Piezo - Resistivity type

  Specification

Actuators

Actuators

Injector

  Specification

ETC Motor [integrated into ETC Module]

ETC Motor [integrated into ETC Module]

  Specification

Purge Control Solenoid Valve (PCSV)

Purge Control Solenoid Valve (PCSV)

  Specification

CVVT Oil Control Valve (OCV)

CVVT Oil Control Valve (OCV)

  Specification

Fuel Pressure Regulator Valve

Fuel Pressure Regulator Valve

  Specification

EWGA DC Motor [integrated into Electric Waste Gate Actuator (EWGA) ]

EWGA DC Motor [integrated into Electric Waste Gate Actuator (EWGA) ]

  Specification

Ignition Coil

Ignition Coil

  Type: Stick type

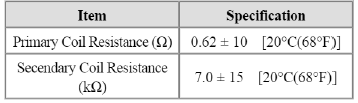

  Specification

RCV Control Solenoid Valve

RCV Control Solenoid Valve

  Specification

Canister Close Valve (CCV)

Canister Close Valve (CCV)

  Specification

Service Standard

Service Standard

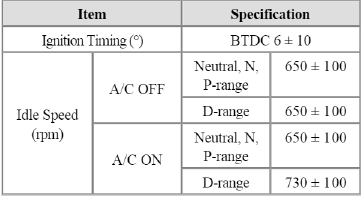

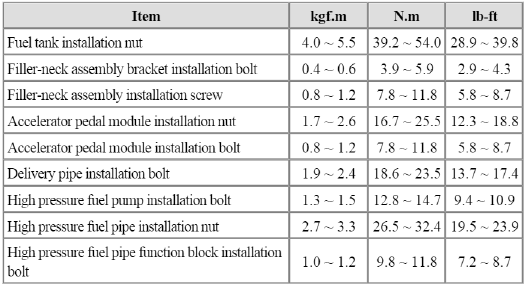

 Tightening Torques

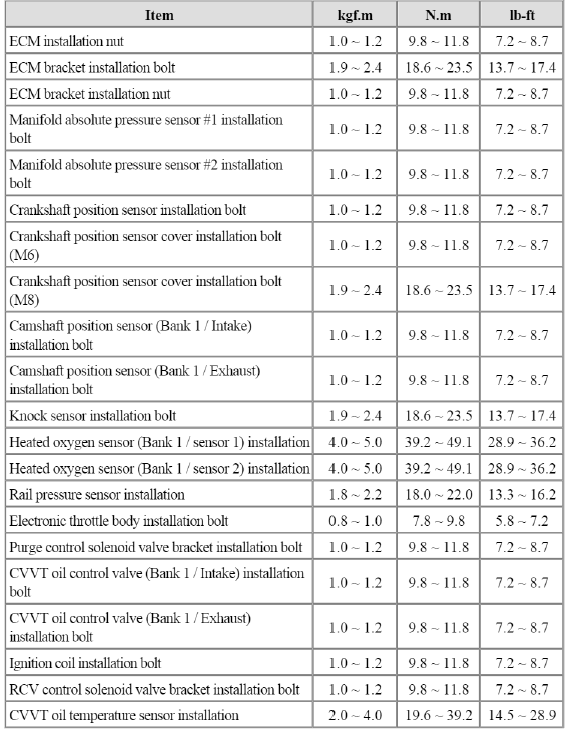

 Tightening Torques

Engine Control System

Fuel Delivery System

Fuel Delivery System

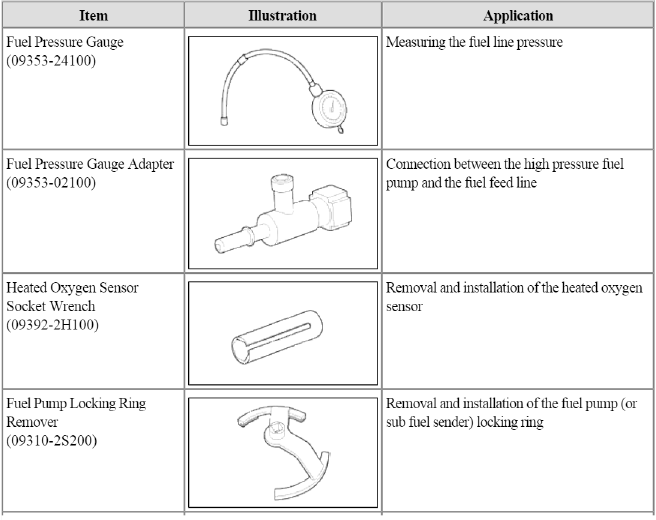

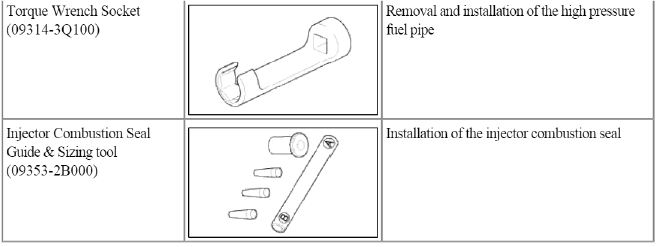

Special Service Tools

Special Service Tools

 Special Service Tools
