Surround View Monitor settings

Surround View Monitor settings

Surround View Monitor can assist in parking by allowing the driver to see around the vehicle.

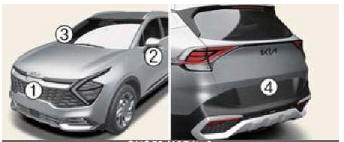

Detecting sensor

Detecting sensor

  • 1: SVM-front view camera
  • 2, 3: SVM-side view camera (under the side view mirror)
  • 4: SVM-rear view camera

Refer to the picture above for the detailed location of the detecting sensors.

Surround View Monitor settings

Camera settings

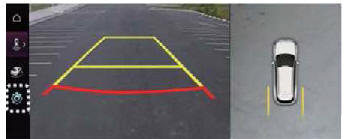

Camera settings

With the vehicle on, select the setup icon ()on the screen or Settings ?Vehicle ? Driver Assistance ? Parking Safety ?Camera settings from the infotainment system screen to change the Rear View Monitor settings.

  • Display Contents: To change the settings of Top view parking guidance, Parking guide in rear view, and Parking distance warning function.
  • Display Settings: To change the screen's brightness and contrast.

Top View Parking Guidance

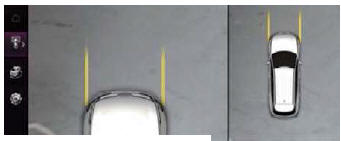

Front top view
Front top view

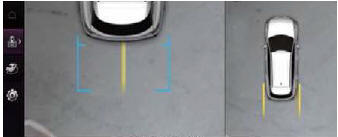

Rear top view
Rear top view

Parking guidance is displayed on the right side of the Surround View Monitor screen when the Front or Rear Top View Parking Guidance is selected.

Rear View Parking Guidance

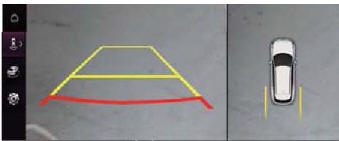

Rear View Parking Guidance

Rear view parking guidance is displayed in the rear view when the Parking guide in rear view is selected.

NOTICE

The horizontal guideline of the Rear View Parking Guidance shows the distance of 1.6 ft. (0.5 m), 3.3 ft. (1 m) and 7.6 ft. (2.3 m) from the vehicle.

Parking Distance Warning

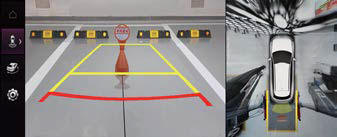

Parking Distance Warning

Parking distance warning is displayed on the right side of the Surround View Monitor top view screen when the Parking distance warning is selected.

Surround View Monitor Auto On

With the vehicle on, select Settings ? Vehicle ? Driver Assistance? Parking Safety ? Surround View Monitor Auto On from the infotainment system screen to use the function.

NOTICE

For more details on Surround View Monitor Auto On, refer to "Surround View Monitor Auto On"
