Kia Sportage: Trip information (trip computer)

Kia Sportage - Fifth generation (NQ5) - (2022-2023) - Owner's Manual / Features of your vehicle / LCD displays / Trip information (trip computer)

Trip information (trip computer)

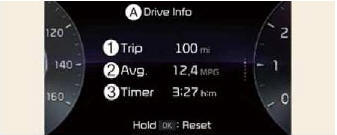

  1. Drive info
  1. Accumulated trip distance
  2. Average fuel efficiency
  3. Total driving time

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and timer.

* For more details, refer to "Trip information (trip computer)"

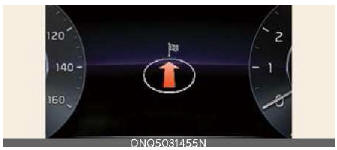

Turn By Turn (TBT) mode

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

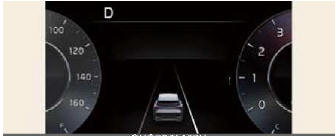

Driving Assist mode

Driving Assist mode

This mode displays the state of:

  • Lane Safety
  • Smart Cruise Control
  • Driver Attention Warning

Information mode

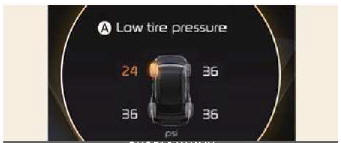

Tire Pressure

Tire Pressure

  1. Low tire pressure

This mode displays the state of:

  • Speedometer
  • Engine temperature
  • Tire pressure
  • AWD traction (if equipped)

Tire pressure status

This mode displays information related to Tire Pressure.

* For more details, refer to "Tire Pressure Monitoring System (TPMS)"

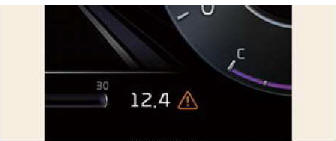

Master warning mode

Master warning mode

This warning light informs the driver the following situations.

  • LED headlamp malfunction
  • Lamp malfunction
  • High Beam Assist malfunction (if equipped)

At this time, a Master Warning icon ( ) will appear beside the User Settings icon ( ) , on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

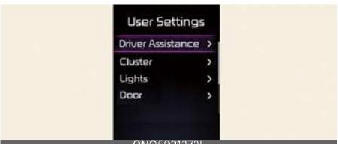

User settings mode

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

  1. Driver Assistance
  2. Cluster
  3. Lights
  4. Door
  5. Convenience
  6. Units
  7. Language
  8. Reset

The information provided may differ depending on which functions are applicable to your vehicle.

  1. Driver Assistance

Items / Explanation

Driving Convenience

  • Highway Driving Assist

To Activate or deactivate Highway Driving Assist

  • Highway Auto Speed Change

To Activate or deactivate Navigation-based Smart Cruise Control

* For more details, refer to "Highway Driving Assist (HDA) (if equipped)"

* For more details, refer to "Navigation-based Smart Cruise Control (NSCC) (if equipped)"

Speed Limit"

  • Speed Limit Offset

To adjust the Speed Limit Offset

  • Speed Limit Assist/Speed Assist Warning/Off

To select the function of Intelligent Speed Limit Assist

* For more details, refer to "Intelligent Speed Limit Assist (ISLA)"

Warning Timing

  • Standard/Late

To select the Warning Timing

Warning Volume

  • High/Medium/Low

To adjust the Warning Volume

Driver Attention Warning

  • Leading Vehicle Departure Alert
  • Inattentive Driving Warning

To activate or deactivate Driver Attention Warning

* For more details, refer to "Driver Attention Warning (DAW)"

Forward Safety

To adjust Lane Keeping Assist

  • Assist/Warning Only/Off

To select the functions

* For more details, refer to "Lane Keeping Assist (LKA)"

Blind-Spot Safety

  • Blind-Spot View
  • Safe Exit Warning

To activate or deactivate Safe Exit Warning.

For more details, refer to "Safe Exit Warning (SEW) (if equipped)"

  • Active Assist/Warning Only/Off

* For more details, refer to "Blind-Spot Collision-Avoidance Assist (BCA) (if equipped)"

Parking Safety

  • Surround View Monitor Auto On
  • Parking Distance Warning Auto On
  • Rear Cross-Traffic Safety

To activate or deactivate Rear Cross-Traffic Collision-Avoidance Assist.

  • Rear Active Assist / Rear Warning Only /Off

* For more details, refer to "Rear Cross-Traffic Collision-Avoidance Assist (RCCA) (if equipped)"

* For more details, refer to "Reverse Parking Collision-Avoidance Assist (PCA) (if equipped)"

* The information provided may differ depending on which systems are applicable to your vehicle.

  1. Cluster

Items/  Explanation

Select Theme

  • Link to Drive Mode
  • Theme A/Theme B/Theme C

To select the Select Theme.

Wiper/Lights Display

  • Activate

To select the Wiper/Lights Display.

Traffic Signs

  • Activate/Deactivate

To select the Traffic Signs.

Icy Road Warning

  • Activate/Deactivate

To select the Icy Road Warning

Cluster Voice Guidance Volume

  • 0~3 Level

To adjust the Cluster Voice Guidance Volume

Welcome Sound

  • Activate/Deactivate
  • To select the Welcome Sound.
  1. Lights

Items/ Explanation

Illumination

  • 1~20 Level

To adjust the instrument cluster illumination.

One Touch Turn Signal

  • Off: The one touch turn signal function will be deactivated.
  • 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly

* For more details, refer to "Lighting"

Ambient Light Brightness

  • 1/2/3/4/Off

To adjust the instrument cluster illumination.

Headlamp Delay

If this item is checked, the headlamp delay function will be activated.

Ambient Light Color

  • 8 colors

To select the Ambient Light Color

High Beam Assist

If this item is checked, High Beam Assist will be activated.

* For more details, refer to "High Beam Assist (HBA)"

* The information provided may differ depending on which functions are applicable to your vehicle.

  1. Door

Items/  Explanation

Automatically Lock

  • Enable on shift (for Automatic transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.

    (With the Engine ON, it is activated.)

  • Enable on speed (for Automatic transmission): All doors will be automatically locked when the vehicle speed exceeds 9.3 mph (15 km/h)
  • Off: The auto door unlock operation will be canceled.

* If the setting is changed while the vehicle is in motion, the changed setting may not immediately operate.

Automatically Unlock

  • On shift to P (for Automatic transmission): All doors will be automatically unlocked if the gear is shifted from R (Reverse), N (Neutral), or D (Drive position to P (Park) position. (With the Engine ON, it is activated.)
  • Vehicle Off / On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.
  • Off: The auto door unlock operation will be canceled.

2 Press Unlock

If this item is checked, the two press unlock will be activated. Press the door unlock button once to unlock the driver's door, and press the button once more within 4 seconds to unlock the rest of the doors.

Horn Feedback

If this item is checked, Horn Feedback will be activated.

Power Liftgate

If this item is checked, Power Liftgate will be activated.

Power Liftgate Opening Speed

  • Normal/Fast

Select the power liftgate speed.

Power Liftgate Opening Height

  • Level 1/Level 2/Level 3/Full Open/User Height Setting

To select the height.

* For more details, refer to "Power liftgate (if equipped)"

Smart Liftgate

To activate or deactivate the Smart Liftgate.

* For more details, refer to "Smart Liftgate with Auto Open (if equipped)"

* The information provided may differ depending on which systems are applicable to your vehicle.

  1. Convenience

Items/  Explanation

Seat Easy Access

  • Off/Normal/Extended

To select the seat movement

Rear Occupant Alert

If this item is checked, the Rear Occupant Alert (ROA) display will be activated

* For more details, refer to "Rear Occupant Alert (ROA) System"

Oil Change Reminder

  • Reset

To reset the Oil Change Reminder.

Welcome Light

  • On Door Unlock/On Driver Approach

To select the welcome mirror/light function.

Welcome Mirror/Light

If this item is checked, Welcome Mirror/Light will be activated.

Wireless Charging System

  • Activate/Deactivate
  • To select the Wireless Charging System function.

Auto Rear Wiper (in R)

If this item is checked, the Auto Rear Wiper will be activated when the front wiper is On and the gear is selected in R (Reverse).

Vehicle Shut Off

Activate/Deactivate

* The information provided may differ depending on which functions are applicable to your vehicle.

  1. Units

Items/  Explanation

Speedometer Unit

  • mph, km/h

To select the Speedometer unit.

Fuel Economy Unit

  • US gallon, UK gallon

To select the Fuel economy unit.

For more details, refer to "Trip information (trip computer)"

Temperature Unit

  • F/C

To select the Temperature unit.

Tire Pressure Unit

  • psi, kPa, bar

To select the Tire Pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

  1. Language

Language

To select the language.

  1. Reset

Reset

You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
