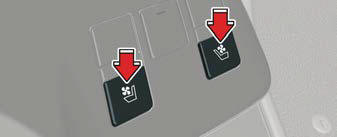

Kia Sportage: Air ventilation seat

The temperature setting of the seat
changes according to the levers position.
The seat warmer (with air ventilation)
defaults to the OFF position whenever
the ENGINE START/STOP button is
turned on.
NOTICE
This function is designed to automatically
change the temperature setting of
the seat (High -> Low) to maintain maximum
comfort inside in case the engine
is stopped by ISG (Idle Stop and Go) system
(if equipped).
CAUTION
Seat damage
- When cleaning the seats, do not use
an organic solvent such as paint thinner,
benzene, alcohol and gasoline.
Doing so may damage the air ventilation
seat.
- Do not place heavy or sharp objects
on the seat. Those things may damage
the air ventilation seat.
- Be careful not to spill liquid such as
water or beverages on the seat. If you
spill some liquid, wipe the seat with a
dry towel. Before using the air ventilation
seat, dry the seat completely

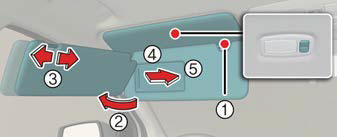

Sun visor
Use the sun visor to shield direct light
through the front or side windows.

The actual sun visor lamp in the vehicle
may differ from the illustration.
- To use the sun visor, pull it downward.
- To use the sun visor for the side window,
pull it downward, unsnap it from
the bracket (1) and swing it to the side
(2).
- To use the vanity mirror, pull down
the visor and slide the mirror cover
(4). Adjust the sun visor extension forward
or backward (3). The ticket
holder (5) is provided for holding a
tollgate ticket.
WARNING
For your safety, do not block your view
when using the sun visor.
NOTICE
Do not put several tickets in the ticket
holder at one time. This could cause
damage to the ticket holder.
