Kia Sportage: General Information
Kia Sportage Third generation (SL) - (2011-2016) - Service and Repair Manual / Engine Electrical System / General Information
Specifications
Specifications

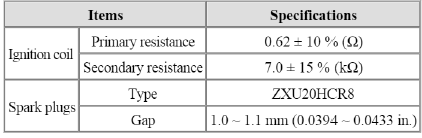

Ignition System

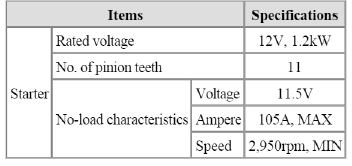

Starting System

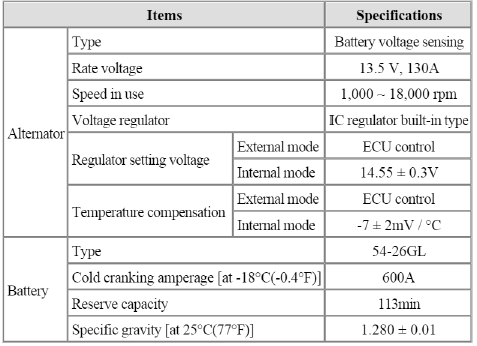

Charging System

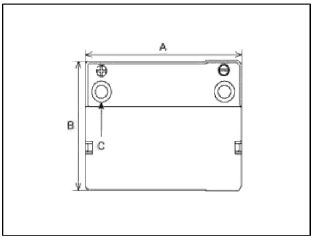

CAUTION

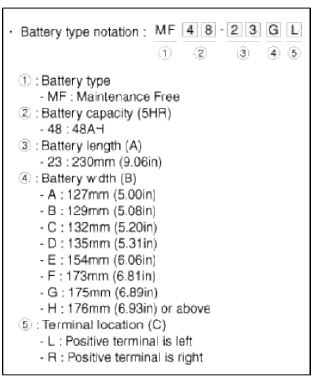

- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7ºC (80.1ºF).
NOTE
Troubleshooting
Trouble Shooting

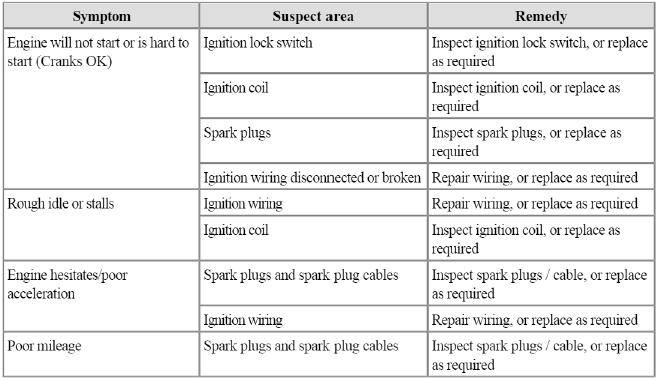

Ignition System

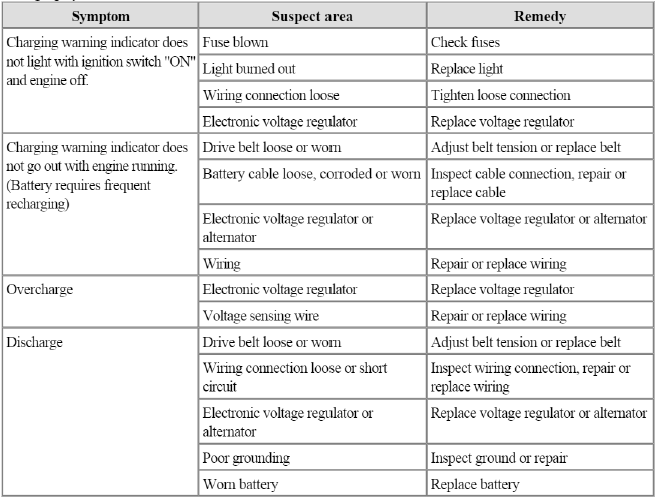

Charging System

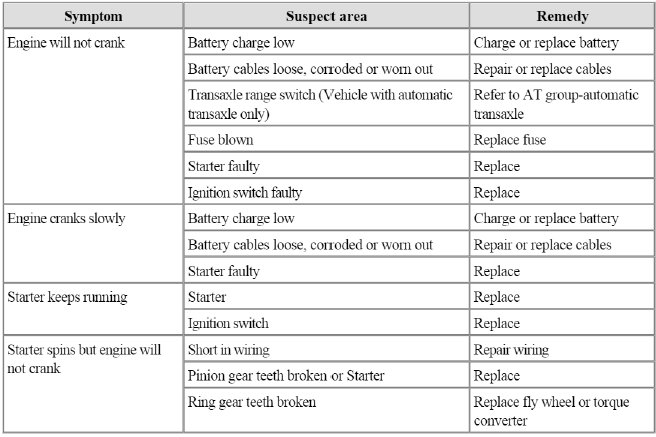

Starting System
Special Service Tools

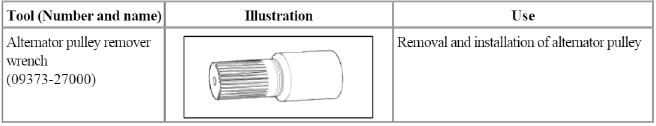

Special Service Tools
