Kia Sportage: Rear View Monitor settings
Rear View Monitor (RVM) (if equipped)

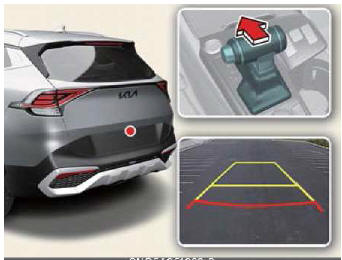

Rear View Monitor will show the area behind the vehicle to assist you when parking or reversing.

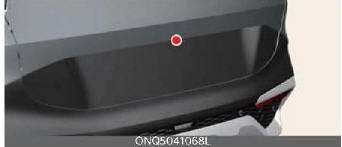

Detecting sensor
Rear view camera
Refer to the picture above for the detailed location of the detecting sensor.
Rear View Monitor settings
Camera settings

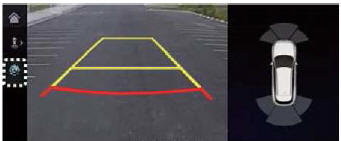

With the vehicle on, select the setup icon
(
) on the screen or Settings
? Vehicle
? Driver Assistance
? Parking Safety
? Camera settings from the infotainment
system screen to change the Rear
View Monitor settings.
- Display Contents: To change the settings of rear view with parking guidance.
- Display Settings: To change the screen's brightness and contrast.
Extend Rear Camera Monitor
With the vehicle on, select or deselect Settings ? Vehicle ? Driver Assistance ? Parking Safety ? Camera settings ? Display contents?Keep rear camera on from the infotainment system screen to set whether or not to use each function.
