Kia Sportage Third generation (SL) - (2011-2016) - Service and Repair Manual / Body Electrical System / BCM (Body Control Module) / Specifications, Schematic Diagrams, Description and Operation

Specifications

 Specifications

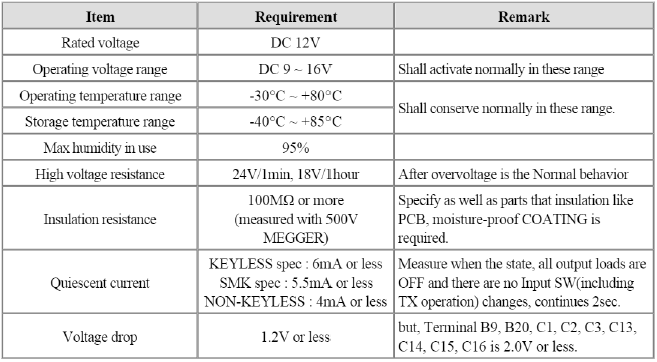

Electrical Performance

Schematic Diagrams

Schematic Diagrams

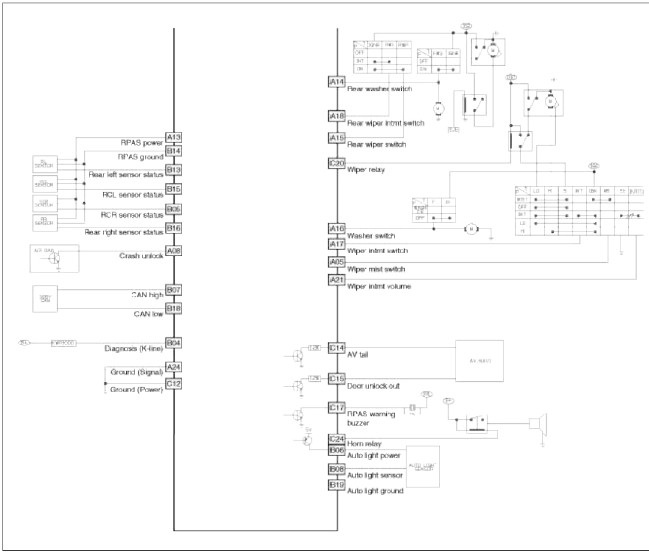

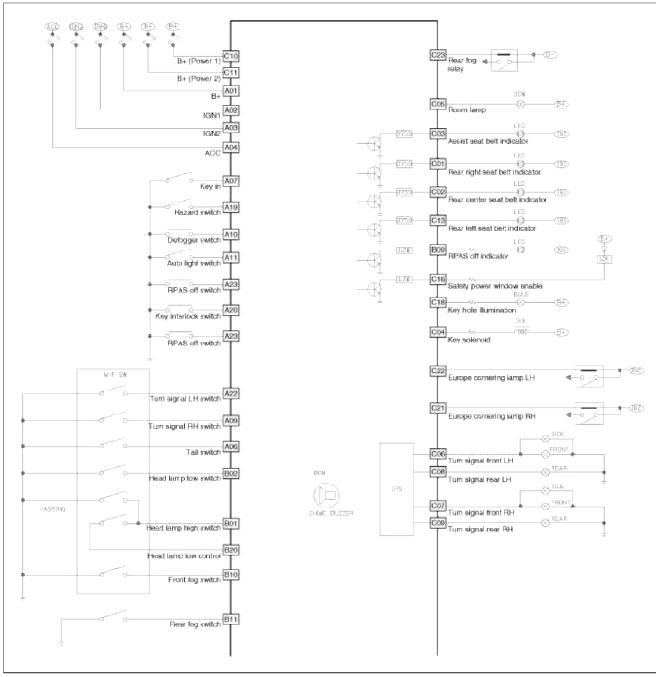

 Circuit Diagram

Description and Operation

Description and Operation

 Description

Body control module receives various input switch signals controlling time and alarm functions for front washer interlocking wiper, front intermittent wiper, mist wiper, rear washer interlocking wiper, rear intermittent wiper, seat belt reminder, key operated warning, parking start warning, RKE teaching sound, SMK warning, power window timer, safety power window, rear defogger timer, windshield deicer timer, decayed room (map) lamp, tail lamp autocut, DRL, escort, head lamp low/high, tail lamp, Turn signal lamp, hazard lamp, ESS lamp, lane change, auto light, front fog lamp, AV tail, central door lock/unlock, AV unlock signal, 2 turn unlock, auto door lock unlock, IGN key reminder, crash door unlock, key inter lock, buglar alarm control.

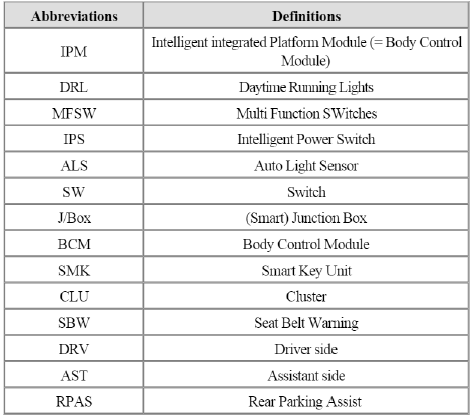

Abbreviations And Definitions

Abbreviations And Definitions

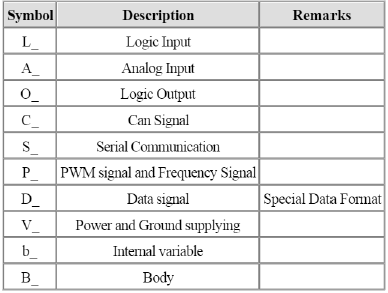

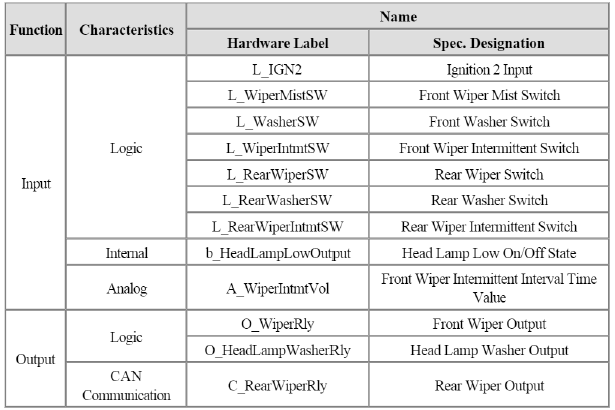

The classification of signal characteristics

The classification of signal characteristics

 Function

 Function

Wiper & Washer Control

Front Wiper & Washer General Description

Front Wiper & Washer General Description

1. Wiper Low Switch Control and Wiper High Switch Control are direct control.

  1. The MFSW's Wiper Low Switch and Wiper High Switch outputs are directly connected with Wiper Motor.
  2. BCM only control Wiper Mist, Wiper Washer and Wiper Intermittent.
  3. Wiper Function Priority: Wiper Washer > Wiper Mist > Wiper Intermittent

Front Wiper Mist Control

  • In case of IGN2 On (L_IGN2 = ON), if turn on the Wiper Mist Switch (L_Wiper Mist Switch= On), then Wiper is controlled, by switch on time.
  • Mist operation does not work at Wiper Washer.

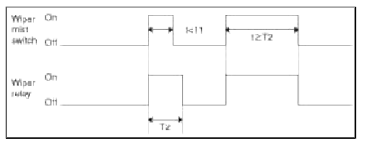

Т1 : One wiping, T2 : Mist one time

Т1 : One wiping, T2 : Mist one time

Front Wiper Intermittent Control

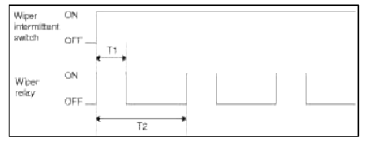

  • In case of IGN2 On (L_IGN2 = ON), if turn on the Wiper Intermittent Switch (L_WiperIntmtswitch = On), then Wiper Low output is turned on depending on Wiper Intermittent Time (WiperIntmt Time, this value is defined by A_WiperIntmtVol input value).

T1 : One wiping, T2 : Wiper intmt time

T1 : One wiping, T2 : Wiper intmt time

Front Wiper Washer Control

Front Wiper Washer Control

1. In case of IGN2 On (L_IGN2 = ON), if user turns on the Washer Switch (L_Washerswitch = On) more than a given time, then Wiper output shall be driven depending on Wiper mode.

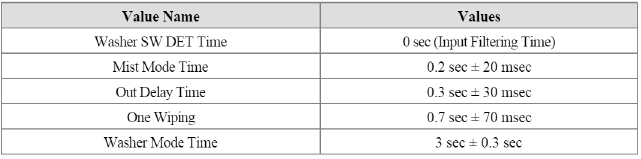

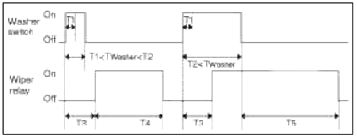

T1 : Washer SW DET time, T2 : Mist mode time,

T1 : Washer SW DET time, T2 : Mist mode time, T3 : Out delay time, T4 : One wiping, T5 : Washer mode time

2. During wiper intermittent control, If Washer switch is turned on, BCM

2. During wiper intermittent control, If Washer switch is turned on, BCM stops the Intermittent control and enter washer control mode and then after washer control finish, return the wiper intermittent control.

T1 : Washer SW DET time, T2 : Mist mode time,

T1 : Washer SW DET time, T2 : Mist mode time, T3 : Out delay time, T4 : One wiping, T5 : Washer mode time, T6 : Wiper intuit time, T7 : (Wiper intmt time - One wiping)

Rear Wiper & Washer General Description

1. BCM has Rear Wiper Control Logic.

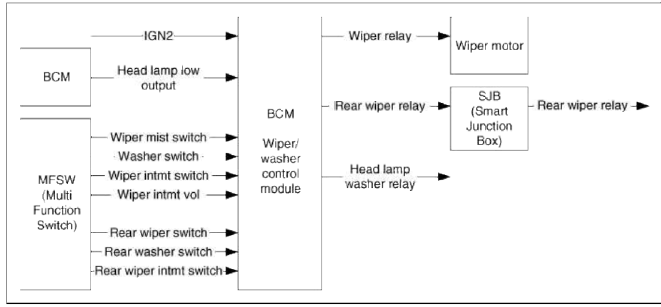

  1. BCM sends the rear wiper control signal (C_RearWiperRly) to J/Box via CAN.
  2. J/Box controls the Rear Wiper motor.
  3. Rear Wiper Function Priority : Rear Wiper Switch > Rear Wiper Washer > Rear Wiper Intermittent

Rear Wiper Switch Control Function

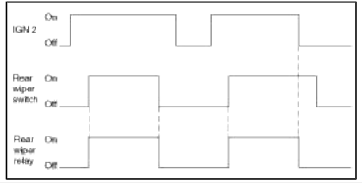

- In case of IGN2 ON (L_IGN2 = On), if user turns on the Rear Wiper Switch (L_RearWiperswitch= On), BCM controls the Rear Wiper Output (C_RearWiperRly = On) until Rear Wiper Switch Off (L_RearWiperSwitch = Off) or IGN2 Off (L_IGN2 = Off)

Rear Wiper Intermittent Control

Rear Wiper Intermittent Control

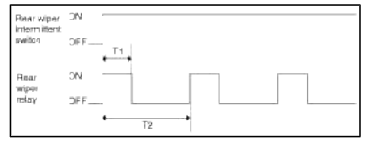

- In case of IGN2 0n(L_IGN2 = ON), if user turns on the Rear Wiper Intermittent Switch (L_RearWiperIntmtswitch = On), then Rear Wiper Low output is turned on following as Rear Wiper Intermittent Time (Reai WiperIntmtTime).

T1 : Rear wiper one time, T2 : Rear wiper intmt time

T1 : Rear wiper one time, T2 : Rear wiper intmt time

Rear Wiper Washer Control

Rear Wiper Washer Control

- In case of IGN2 On (L_IGN2 = ON), if user turns on the Rear Washer Switch (L_RearWasherswitch = On) more than a given time, then Wiper output shall be driven depending on Rear Wiper mode.

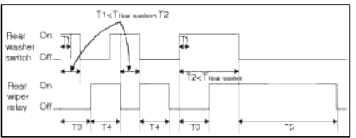

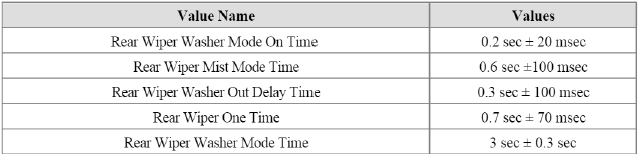

T1 : Rear wiper washer mode on time, T2 : Rear wiper mist mode time, T3 : Rear wiper washer out delay time, T4 : Rear wiper one tune, T5 : Rear wiper washer mode time

T1 : Rear wiper washer mode on time, T2 : Rear wiper mist mode time, T3 : Rear wiper washer out delay time, T4 : Rear wiper one tune, T5 : Rear wiper washer mode time

- Rear Washer Wiping During Rear Wiper Intermittent Control

- Rear Washer Wiping During Rear Wiper Intermittent Control During Rear Wiper Intermittent Control, If Rear Washer Switch is turned on, BCM stops the Intermittent Control and enter Rear Wiper Washer Control Mode and then after Rear Wiper Washer Control finish, return the Rear Wiper Intermittent Control.

Head Lamp Washer Function

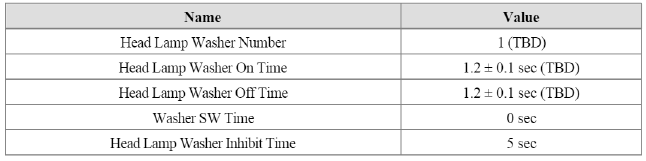

1. In case of IGN2 ON (L_IGN2 = On) & HEAD LAMP ON (b_HeadLampLowOutput = On) status, if washer switch input (L_Washerswitch = On) is detected and keep on the state longer than "WasherSWTime", Head Lamp Washer Output is turned On (O_HeadLampWasher = On) during "Head Lamp Washer On Time". If "HeadLampWasherNumber" is bigger than 1, Head Lamp washer output repeats On and Off for "Head Lamp Washer On Time" and "Head Lamp Washer Off Tune" and "HeadLampWasherNumber" times.

2. When another Head Lamp Washer is requested during Head Lamp Washer activation, the second is ignored.

3. After an output activation of the Head Lamp Washer, there is an inhibition time for "HeadLampWasherInhibitTime". During the inhibition time, Head Lamp washer request is ignored.

4. After beginning the output, even though the precondition is not satisfied (Head Lamp Off), output does not stop.

But in IGN2 off output is stop.

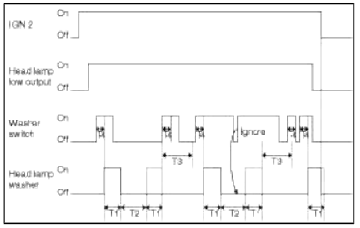

T1 : Head lamp washer on time, T2 : Head lamp washer off time, T3 : Head lamp washer inhibit time, T4 : Washer SW time

T1 : Head lamp washer on time, T2 : Head lamp washer off time, T3 : Head lamp washer inhibit time, T4 : Washer SW time

Exterior Lighting Control
