Kia Sportage: Temperature control

Kia Sportage - Fifth generation (NQ5) - (2022-2024) - Owner's Manual / Features of your vehicle / Manual climate control system / Temperature control

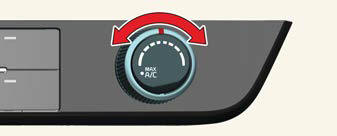

The temperature control knob allows you to control the temperature of the air flowing from the ventilation system.

Temperature control

To change the air temperature in the passenger compartment, turn the knob to the right for warm and hot air or to the left for cooler air.

NOTICE

When starting the vehicle in cold weather a more efficient way to heat the passenger compartment is to do the following.

  • Turn off or lower the blower, right after starting the engine.
  • Engine temperature is still low and the air flow from the heater is still cold.
  • After a few minutes of engine warm up, turn on or set the fan to a higher level and adjust the temperature setting to hot.

Controlling air intake

The air intake control is used to select the outside (fresh) air position or recirculated air position.

Without outside air position button
Without outside air position button

To change the air intake control position.

  • Push the desired control button

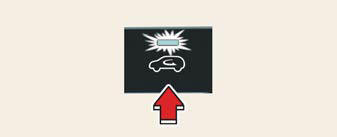

Recirculated air position

The indicator light on the button illuminates when the recirculated air position is selected.

With the recirculated air position selected, air from the passenger compartment will be drawn through the heating system and heated or cooled according to the function selected.

Outside (fresh) air position

The indicator light on the button will turn off when the outside (fresh) air position is selected.

With the outside (fresh) air position selected, air enters the vehicle from outside and is heated or cooled according to the function selected.

NOTICE

Prolonged operation of the heater in the recirculated air position (without air conditioning selected) may cause fogging of the windshield and side windows, and the air within the passenger compartment may become stale.

In addition, prolonged use of the air conditioning with the recirculated air position selected will result in excessively dry air in the passenger compartment

WARNING

  • Continuously using the climate control system in the recirculated air position may allow humidity to increase inside the vehicle, which may fog the glass and obscure visibility.
  • Do not sleep in a vehicle with the air conditioning or heating system on. It may cause serious harm or death due to a drop in the oxygen level and/or body temperature.
  • Continuously using the climate control system in the recirculated air position can cause drowsiness or sleepiness, and loss of vehicle control. Set the air intake control to the outside (fresh) air position as much as possible while driving.

Controlling fan speed

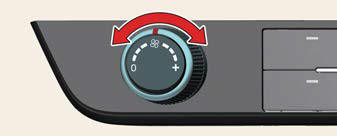

The fan speed control knob allows you to control the fan speed of the air flowing from the ventilation system.

The ENGINE START/STOP button must be in the ON position for fan operation.

To change the fan speed:

  • Turn it right for higher speed, or turn it left for lower speed.

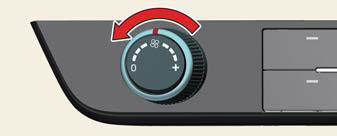

Turning off the blowers

To turn off the blowers:

  • Turn the fan speed control knob to the "0" position.

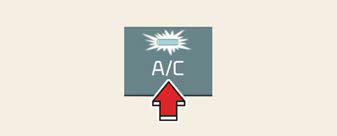

Air conditioning (A/C)

Air conditioning (A/C)

  • Press the A/C button to turn the air conditioning system on (indicator light will illuminate).
  • Press the button again to turn the air conditioning system off.
