Kia Sportage - Second generation (JEKM) (2005-2015) - Body Workshop Manual / Body structure / High tension steel sheet used area / Center floor panel

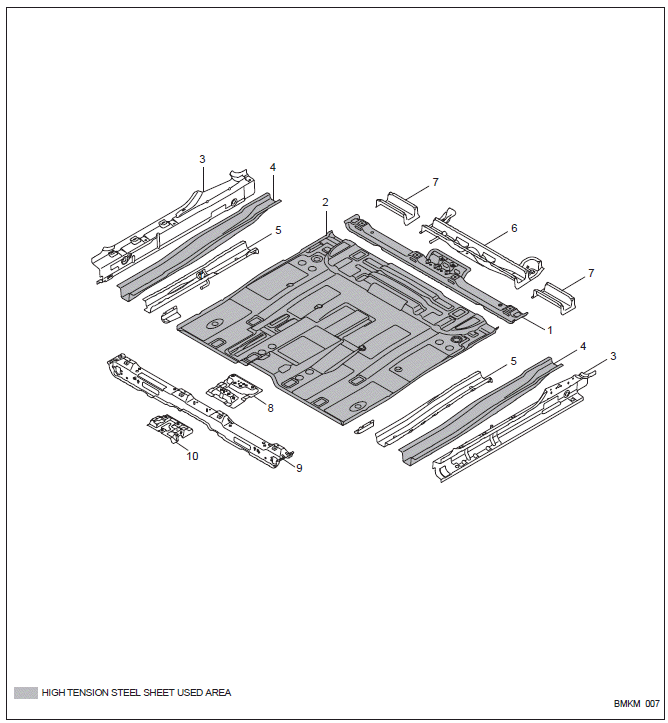

  1. Front seat cross rear member assembly
  2. Center floor panel
  3. Side sill inner panel assembly
  4. Center floor side outer member assembly
  5. Center floor side inner member assembly
  6. Propeller shaft mounting bracket
  7. Skid plate mounting gusset
  8. Parking brake lever reinforcement assembly
  9. Front seat cross front member assembly
  10. Center support bracket

Rear floor panel

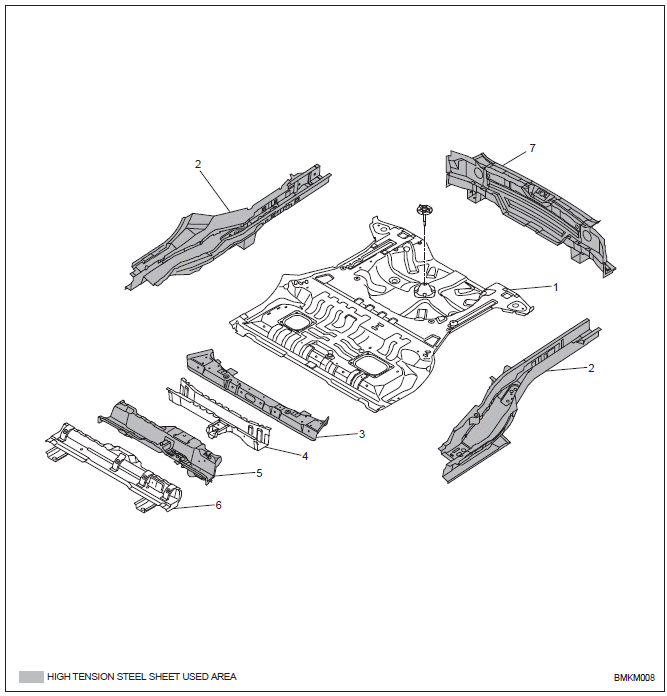

  1. Rear floor panel
  2. Rear floor side member assembly
  3. Rear floor upper cross member assembly
  4. Rear floor lower No.3 cross member assembly
  5. Rear floor lower No.2 cross member assembly
  6. Rear floor lower No.1 cross member assembly
  7. Rear end cross member assembly
