Kia Sportage: Fender panel & Hood panel & Tail gate panel

Kia Sportage - Second generation (JEKM) (2005-2015) - Body Workshop Manual / Body structure / High tension steel sheet used area / Fender panel & Hood panel & Tail gate panel

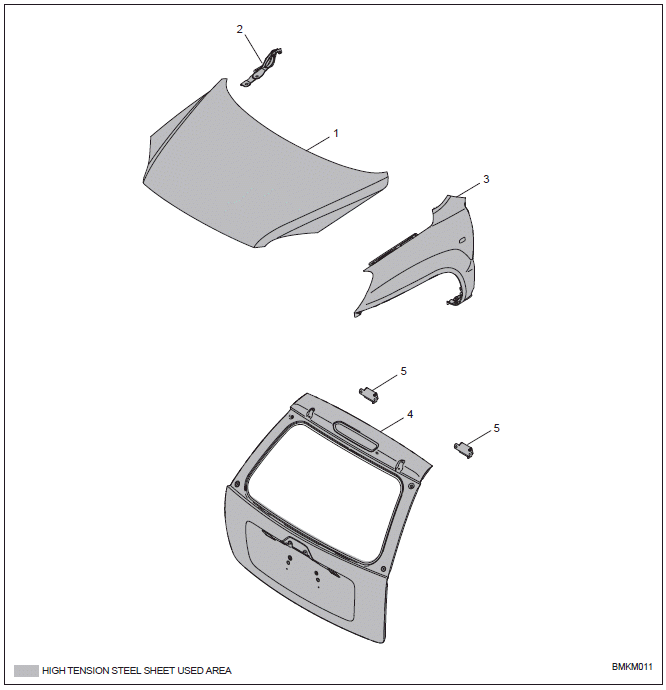

  1. Hood panel assembly
  2. Hood hinge assembly
  3. Fender panel
  4. Tail gate panel assembly
  5. Tail gate hinge assembly

Door panel

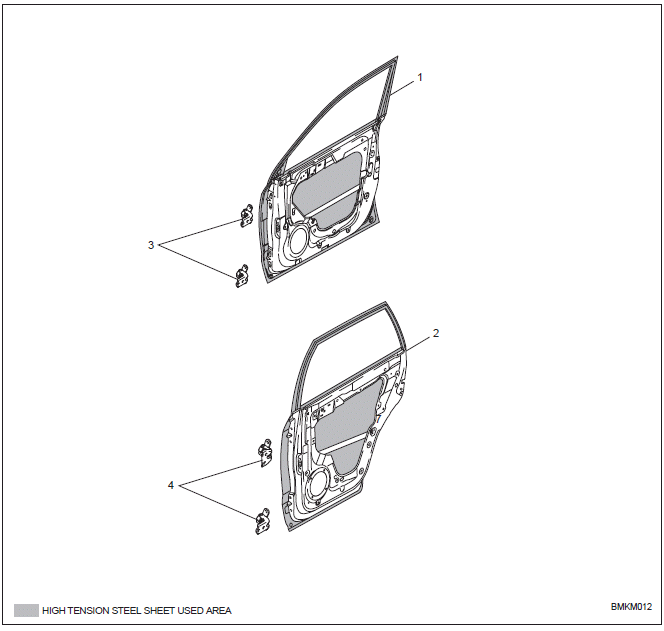

  1. Front door panel assembly
  2. Rear door panel assembly
  3. Front door hinge assembly
  4. Rear door hinge assembly
