Kia Sportage Third generation (SL) - (2011-2016) - Service and Repair Manual / Heating, Ventilation, Air Conditioning / Air Conditioning System / Cluster ionizer

Components and Components Location

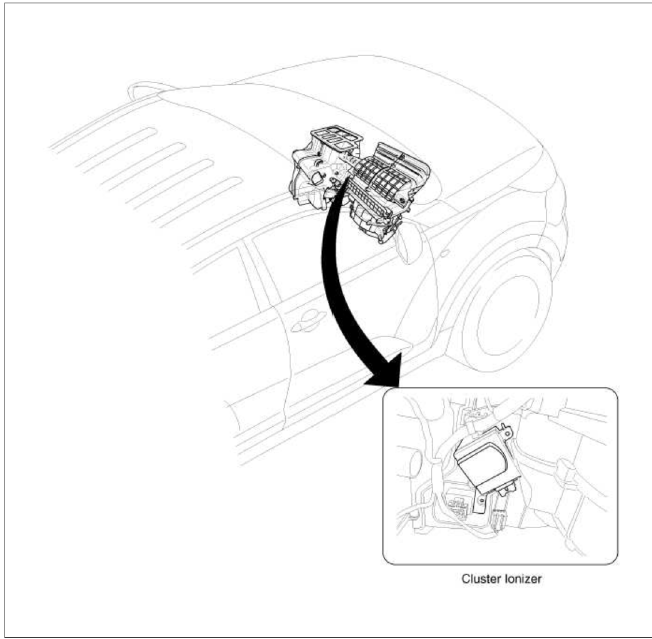

 Component Location

Description and

Description and Operation

Description

1. The function of cluster ionizer is cleaning air by sterilizing and dissolving of air conditioner.

2. The function of cluster ionizer is controlling mold caused by stench of air conditioner and external inflow of air.

Repair procedures

Inspection

1. Press the OFF switch more then 4 times within 2 seconds while pressing the MODE switch.

* Diagnostic procedure refer to DTC code.

* Diagnostic procedure refer to DTC code.

Replacement

1. Disconnect the negative (-) battery terminal.

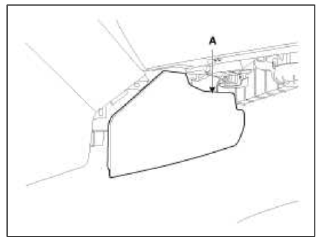

2. Remove the extension cover (A).

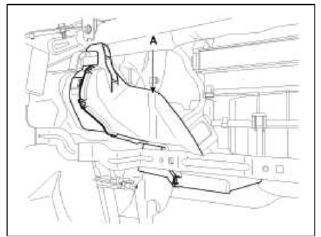

3. Remove the shower duct (A).

3. Remove the shower duct (A).

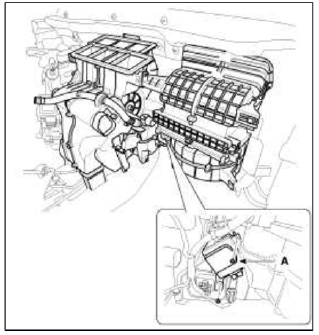

4. Loosen the screws and then remove the cluster ionizer (A).

4. Loosen the screws and then remove the cluster ionizer (A).

5. Installation is the reverse order of removal.

5. Installation is the reverse order of removal.
